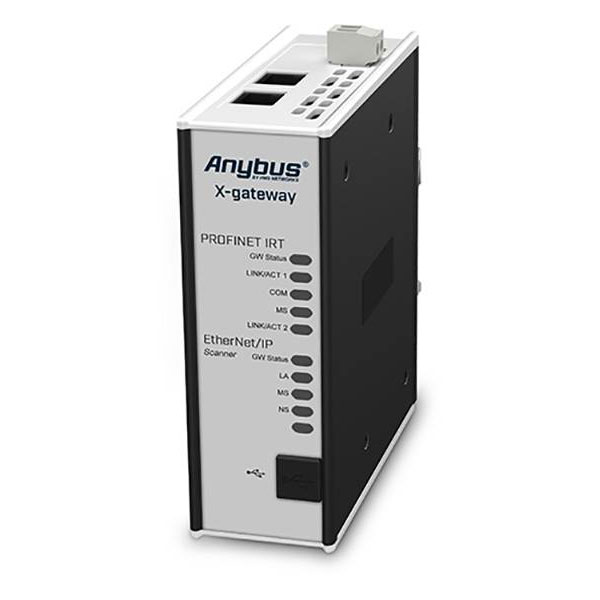

Anybus AB7504 X-gateway Ethernet/IP to PROFINET IRT Fast I/O Transfer

The Anybus AB7504 gateway by Anybus is an interface converter designed to connect Ethernet/IP and PROFINET IRT networks. Operating at 24 V DC, it facilitates seamless communication between different industrial protocols in automation systems. It is commonly used in applications requiring integration of diverse network protocols such as modbus and CANopen with Ethernet.

Current Consumption	200mA
Dim	(W x H) 44 mm x 127 mm
Height	127mm
Max. Current Consumption	400mA
Max. operating temperature	+65°C
Min. operating temperature	-25°C
Misc Attribute 1	AnyBus X-gateway – Ethernet/IP Adapter – PROFINET IRT Device
Misc Attribute 2	EtherNet/IP Slave/PROFINET IRT Slave
Operating Temperature	-25 up to +65°C
Operating Voltage	24V DC
Plastic free packaging	Plastic-free packaging
Type	Gateway
Width	44mm
