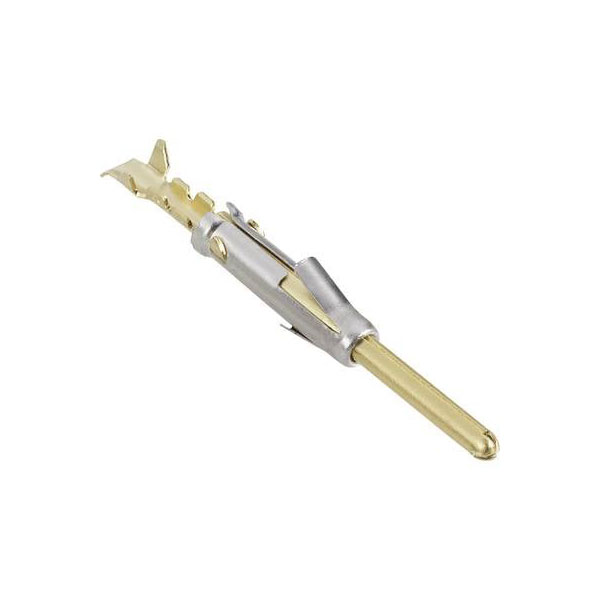

Amphenol SP28WL1F RT360 Bullet Connector Single Pin Contact Round Conn

Amphenol's SP28WL1F is a bullet connector with a single contact pin from the RT360™ series of round connectors. It is designed for robust and reliable connections in demanding environments. Typical applications include industrial machinery and transportation systems, where secure electrical connections are critical.

Type	Pin
Number of Contacts	1
Number of Rows	N/A
Connection	Crimp
Connection Angle	180°
Contact Material	Gold plated
Contact size	20
Cross Section	0.08 mm² (max)
Current Rating	32A
max. cross section	0.08mm²
Max. temperature	+85°C
Min. temperature	-40°C
Nominal Voltage	600V
Series	RT360™
Wire Gauge (AWG)	30 - 28
