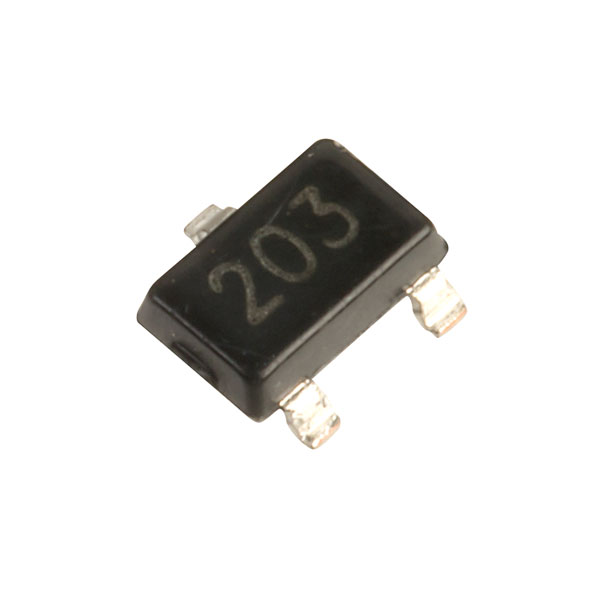

Allegro A1203LLHLT-T Hall Effect Sensor IC Bipolar 3.8-24V 25mA -95 to 95 SOT23W

The A1203LLHLT-T is a bipolar Hall effect switch in a surface mounting SOT-23W package. The device is capable of continuous operation and features 150° high temperature operation, fast power-on time and low-noise operation. The IC includes, on a single chip, a voltage regulator, Hall-voltage generator, small-signal amplifier, Schmitt trigger and NMOS output transistor. The unique Hall element geometry and low-offset amplifiers help to minimise noise.

For extensive application notes that cover a number of industrial, commercial and consumer applications please see here.

• BiCMOS Technology
• Solid-state reliability
• Stable operation over full operating temperature range
• Factory-programmed at end-of-line for optimum performance
• Reverse-battery protection
• Robust EMC performance
• High ESD rating
• Regulator stability without a bypass capacitor
• AEC-Q100 Automotive qualified
