Adels-Contact 19938 Screw Terminal 3-Pin Flexible/Fixed 0.5-2.5mm²

Adels-Contact
Order Code:

11-2026

Brand: Adels-Contact MPN: 19938 EAN-13: 4028012100125
Qty Unit Price (Ex VAT)
3+ £1.75
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 12 weeks

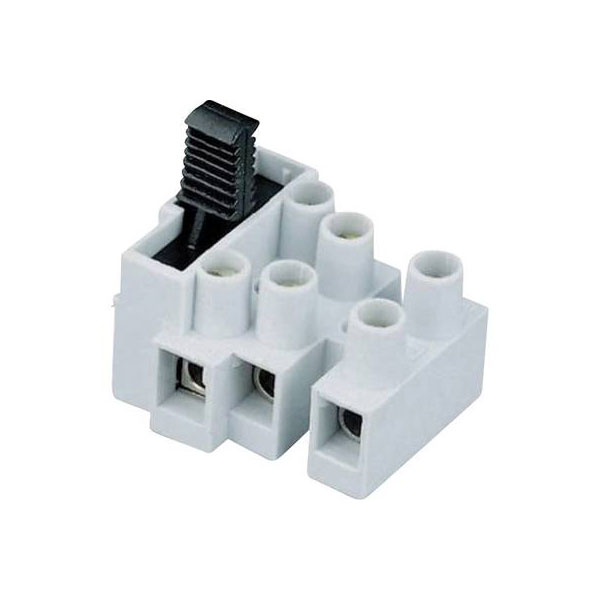

Adels-Contact's 19938 screw terminal accommodates both flexible and fixed wires from 0.5 to 2.5 mm², featuring three pins. This connector is suitable for European standard electrical applications, ensuring secure and stable connections. Typically used in electrical installations, it is ideal for lighting fixtures and other general wiring tasks.
Type Screw terminal
Clamping range diameter mm 2.5mm²
Contact Material Spring steel, stainless
Cross Section 2.5mm²
Cross section (flexible) (max.) 2.5mm²
Cross section (flexible) (min.) 0.5mm²
Cross section (inflexible) (max.) 2.5mm²
Cross section (inflexible) (min.) 0.5mm²
Insulation Material PA 6.6
Misc Attribute 1 3-pin with wire protection
Misc Attribute 2 503 SI/3 DS
Nominal Current 10A
Nominal current - rounded value 10A
Nominal current (details) 10A
Nominal Voltage 380V AC
Nominal voltage (details) Fuse 250 V / AC
Connection terminals 380V AC
Number of Pins 3
Pins 3
