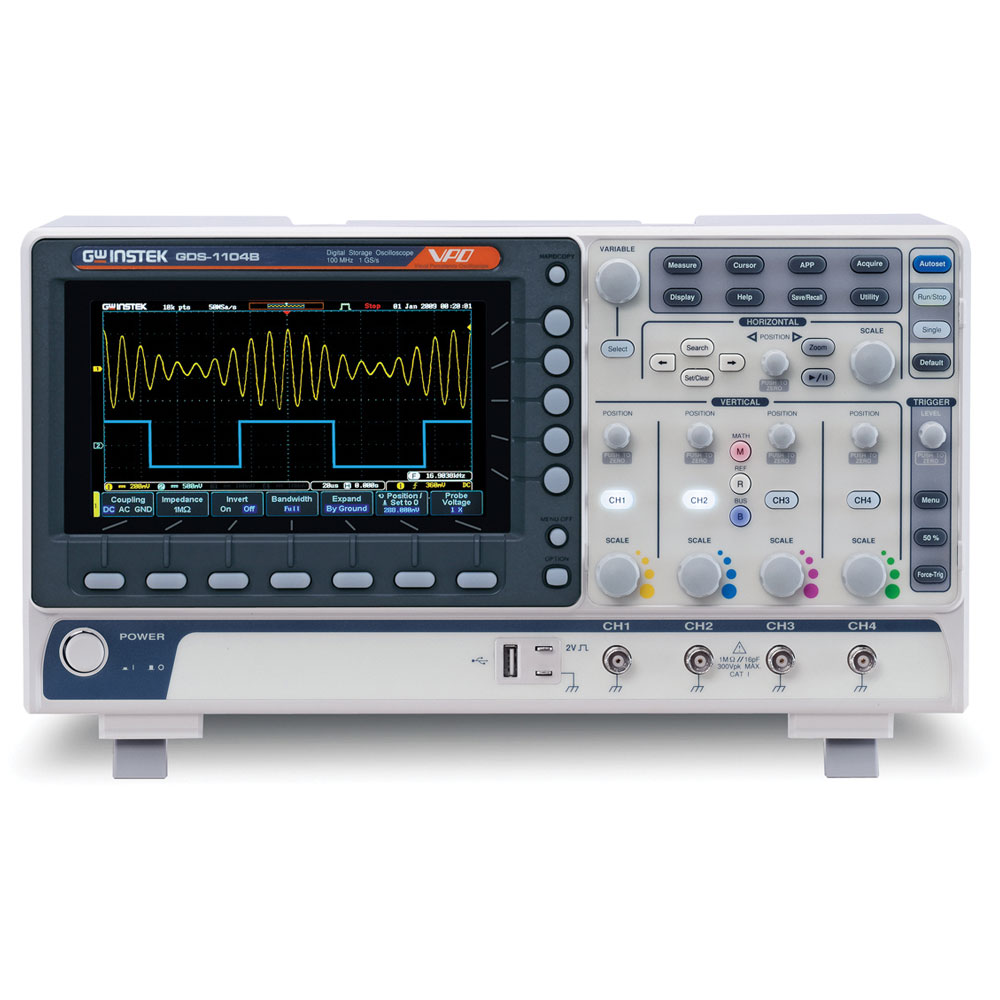

100MHz, 4-Channel, Digital Storage Oscilloscope

<p>The GDS-1000B Series features four bandwidth selections - 200MHz, 100 MHz, 70 MHz, 50MHz and equips with analog<br>signal input terminals by four or two channels. The maximum sampling rate for each single channel is 1GSa/s, and the<br>memory depth is 10Mpts per channel independently. The GDS-1000B Series has a waveform update rate of 50,000wfms/s,<br>which helps users to precisely observe the detailed waveform variation. Additionally, 7" WVGA color LCD display and the<br>256 color gradient display function together allow waveforms to be observed with the senses of transparency and gradation.<br>With respect to the horizontal time scale adjustment knob and trigger level adjustment knob, GW Instek provides a very<br>thoughtful design -the zero key function, which allows engineers to work more effectively. For mathematical analysis mode,<br>1Mpts FFT signal display makes the dull frequency domain signal analysis more delicate.</p>
