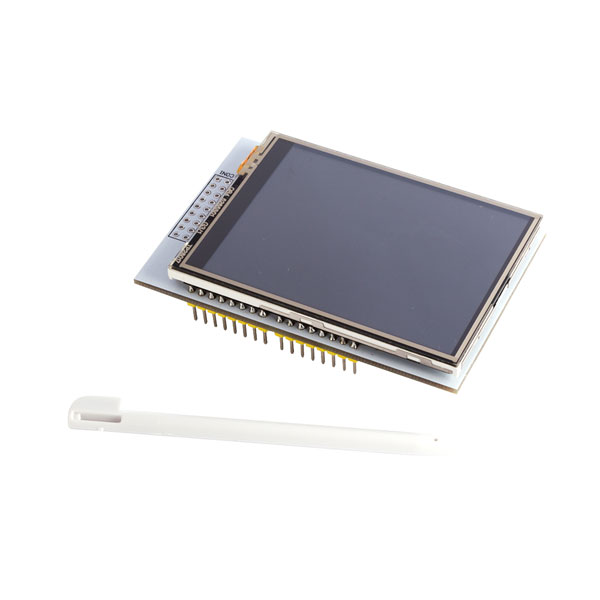

Whadda WPSH412 2.8 Inch Touch Screen For Development Board

The Whadda WPSH412 is a touch screen with 2.8" display and a microSD slot on a shield.

The shield comes completely assembled, tested and ready-to-use. No cables, no soldering required. Just plug in the shield, load the library and your display will be up and running.

• Resolution: 240 RGB (H) x 320 (V)
• Display driver: ILI9341 V0.7
• Colour depth: 262,000 colours
• 8-bits, 9-bits, 16-bits, 18-bits interface with 8080-I /8080-II series MCU
• 6-bits, 16-bits, 18-bits RGB interface with graphic controller
• 3-line / 4-line serial interface
• Full colour mode (idle mode OFF): 262,000 colour (selectable colour depth mode by software)
• Reduced colour mode (idle mode ON): 8 colour
• Operating temperature: -40 °F to + 185°F (-40 °C to +85 °C)
