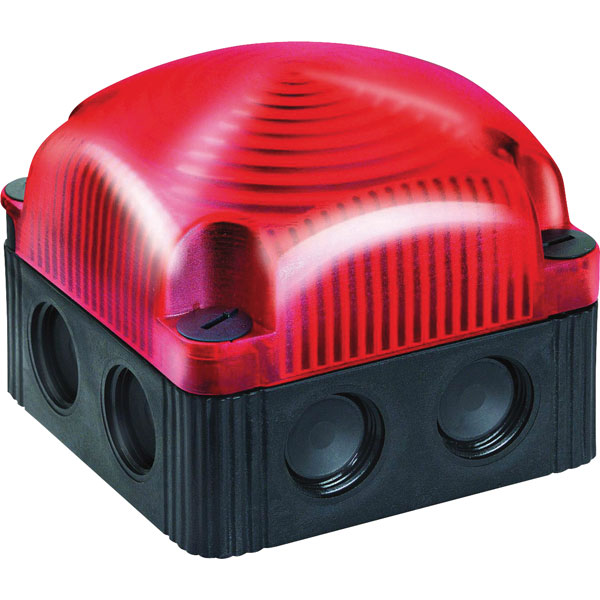

Werma Signaltechnik LED Permanent Beacon, Red

<P>A range of <STRONG>Werma Signaltechnik LED Permanent Beacons</STRONG> from the <STRONG>853.100 Series</STRONG>. These red beacons can be wall, base and ceiling mounted. They also save on installation time thanks to a snap-on fixing bracket. Simply drill two holes, attach the fixing bracket to the wall and snap on the beacon. The cable can be fed through one of the eight self-sealing membranes without the need for any tools. Once the cable has been connected to the terminals, the lens can be clipped onto the base and secured using the four captive quick release screws.</P><P>The <STRONG>LED Beacons</STRONG> can be easily turned into a traffic light combination. Simply attach different coloured beacons together using the connector (order code <STRONG>63-8452</STRONG>).</P>
  • LED Permanent beacons
  • Beacon in attractive quadratic form
  • Wall, base and ceiling mounted
  • IP65 protection rating (with cable gland)
  • Life duration of up to 50,000 hrs
  • Innovative connector to create traffic light combinations
  • Easy assembly due to quick release screws
  • Thread/membrane combination keeps cabling requirements to a minimum
  • Conforms to the Low Voltage Directive and EMC Directive
  • Supplied with Red dome
  • Available with an input voltage of 12V DC, 24V DC, 115 to 230V AC
  • Manufacturer's part: Werma Signaltechnik LED Permanent Beacons
Description Image Product Buy Qty Pricing (Ex VAT) Current Voltage Type Colours Sound Output
Werma Signaltechnik 853.100.54 LED Permanent Beacon 12VDC Red
Werma Signaltechnik 853.100.54 LED Permanent Beacon 12VDC Red
Standard range
Order code: 63-9167
MPN: 853.100.54

6 in Stock, despatched in 4 days
1+ £94.92
180mA 12V Beacon Red N/A
Werma Signaltechnik 853.100.55 LED Permanent Beacon 24VDC Red
Werma Signaltechnik 853.100.55 LED Permanent Beacon 24VDC Red
Standard range
Order code: 63-9168
MPN: 853.100.55

10 in Stock, despatched in 4 days
1+ £88.80
50mA 24V Beacon Red N/A
Mftrs. Part No:853.100.54853.100.55
Order code:63-916763-9168
Connection:Screwable connectionScrewable connection
Wire size:1.5mm² finely stranded1.5mm² finely stranded
Fixing:Base/Bracket mountingBase/Bracket mounting
Starting currentmax 1.25Aapprox. 500mA
Colour:RedRed
Cable entry:Diaphragm bushingDiaphragm bushing
Cable diameter:max. 8mmmax. 8mm
Protection rating:IP66/67IP66/67
Voltage:12V DC24V DC
Voltage type:DCDC
Current consumptionmax.180mAmax. 50mA
Temperature range:-25°C to +50°C-25°C to +50°C
Housing material:PP-GF, BlackPP-GF, Black
Lens:PCPC
Signal effect:LED PermanentLED Permanent
Width:85mm85mm
Height:85mm85mm
Depth:72mm72mm
Net weight:132g132g
