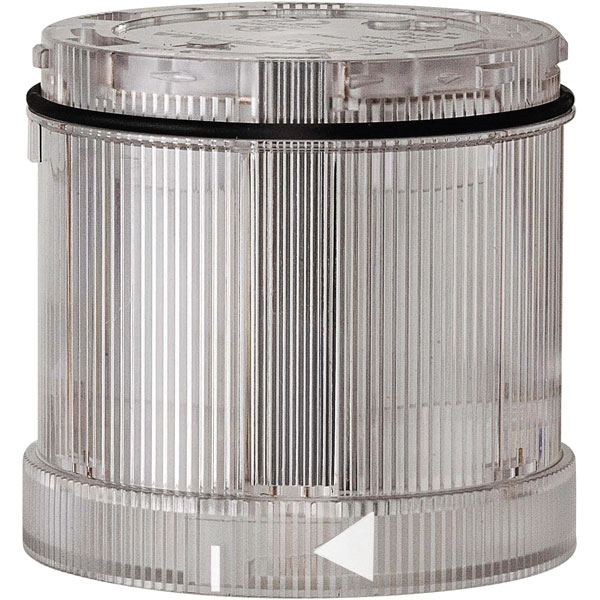

The Werma Signaltechnik 644.450.55 is an LED Multicolour Signal Light that offers countless combinations of optical and acoustic possibilities of the modular composition of the product. The signal lamp is able to produce seven different colours. These are triggered via the pins in the terminal element.
Modular signal towers provide an important visual signal, for example, a change in status of a machine or a process. In emergencies, they can provide a clear visual and acoustic warning of danger.
- Seven colours in one beacon
- Different colours can be triggered via the pins in the terminal element
- Positive and negative control logic
- The three basic colours (red/yellow/green) can be triggered using only two PLC outputs
- High light intensity
- Manufacturer's part: Werma Signaltechnik 644.450.55
| Colour |
Various |
| Type |
Beacon |
| Conforms with AS-I |
No |
| Conforms with ATEX-directive |
No |
| Conforms with CCC |
No |
| Conforms with CE |
Yes |
| Conforms with CMIM |
No |
| Conforms with DNV |
No |
| Conforms with FCC |
No |
| Conforms with ISED |
No |
| Conforms with RoHS CN |
No |
| Conforms with RoHS directive |
Yes |
| Conforms with TÜV |
No |
| Conforms with UKCA (Importer) |
Yes |
| Conforms with UL |
cULus |
| Conforms with VdS |
No |
| Current |
500mA |
| Diameter |
70 |
| Dome colour |
Clear |
| EAC certificate available |
No |
| Height |
66 |
| ICAO Certification |
No |
| IP Rating |
IP65 |
| Light colour |
MC 7 colours |
| Light Source |
LED |
| Materials |
PC |
| Operating Voltage |
24v |
| Operating voltage tolerance |
+/- 10% |
| Operating voltage type |
DC |
| Optical signal image |
Permanent |
| Pollution degree |
3 |
| Product Weight |
67 |
| Protection category |
IP65 |
| Protection Class |
Protection class 2 |
| Rated inrush current |
500ma |
| Rated operational current |
120 |
| Rated operational voltage |
24vdc |
| Service life optical |
50,000 h maximum |
| Supply Voltage |
24V |
| UL Type Rating |
Type 12 |
| WEEE |
Yes |
| Weight with packaging |
81 |
| Working temperature maximum |
+50°C |
| Working temperature minimum |
-20°C |
