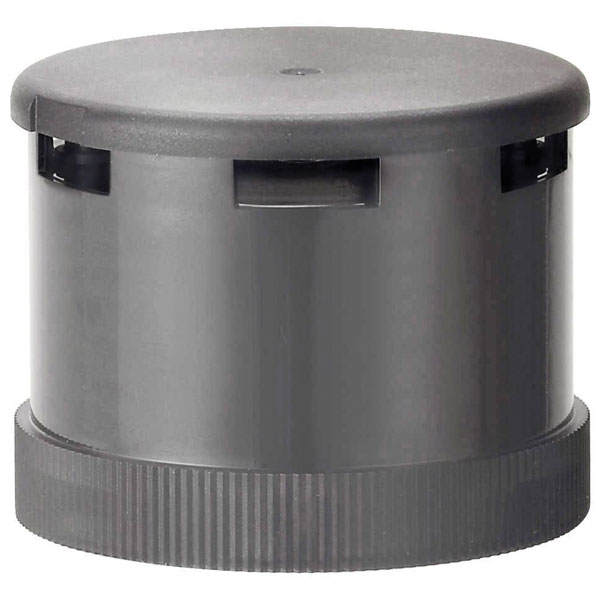

The Werma Signaltechnik Sounder 645.890.60 KombiSIGN 71 is a durable and high-performance signalling device. It is ideal for use in industrial and manufacturing environments where audible alerts are necessary to ensure safety and efficiency. This reliable sounder facilitates quick response through clear and effective sound warnings.
| Type |
Sounder |
| Acoustic service life |
5,000 h minimum |
| Acoustic signal image |
Multi-tone |
| Case Colour |
Black |
| Conforms with AS-I |
No |
| Conforms with ATEX-directive |
No |
| Conforms with CCC |
Yes |
| Conforms with CE |
Yes |
| Conforms with CMIM |
No |
| Conforms with DNV |
No |
| Conforms with FCC |
No |
| Conforms with ISED |
No |
| Conforms with RoHS CN |
No |
| Conforms with RoHS directive |
Yes |
| Conforms with TÜV |
No |
| Conforms with UKCA (Importer) |
Yes |
| Conforms with UL |
cULus |
| Conforms with VdS |
No |
| Diameter |
70mm |
| Dimensions |
(Ø x H) 70 mm x 54 mm |
| EAC certificate available |
No |
| Height |
54mm |
| Housing Colour |
Black |
| ICAO Certification |
No |
| Insulation Voltage |
Ui = 250V / Uimp = 2500V |
| IP Rating |
IP65 |
| Materials |
PC |
| Misc Attribute |
KombiSIGN 71 |
| MTTFd-value [years] |
1860 |
| Number of tones |
8 |
| Operating Voltage |
115-230V |
| Operating voltage frequency |
50Hz at 230V; 60Hz at 115V |
| Operating voltage tolerance |
+/- 10% |
| Operating voltage type |
AC |
| Overvoltage category |
II |
| Pollution degree |
3 |
| Product Weight |
74 |
| Protection category |
IP65 |
| Protection Class |
Protection class 2 |
| Rated inrush current |
250ma |
| Rated operational current |
45 |
| Rated operational voltage |
230vac |
| Signal type |
Multi-tone signal |
| Sound Level |
102dB |
| UL Type Rating |
Type 12 |
| Volume (max) at 1m distance |
102,0 dB (A) |
| Volume adjustable |
Switch |
| Volume adjustment range |
92 - 102 dB (A) |
| WEEE |
Yes |
| Weight |
74g |
| Weight with packaging |
93 |
| Working temperature maximum |
+50°C |
| Working temperature minimum |
-20°C |
