Weipu SP2113/S9 SP21 Socket Bullet Connector 9-Pin UV Resistant

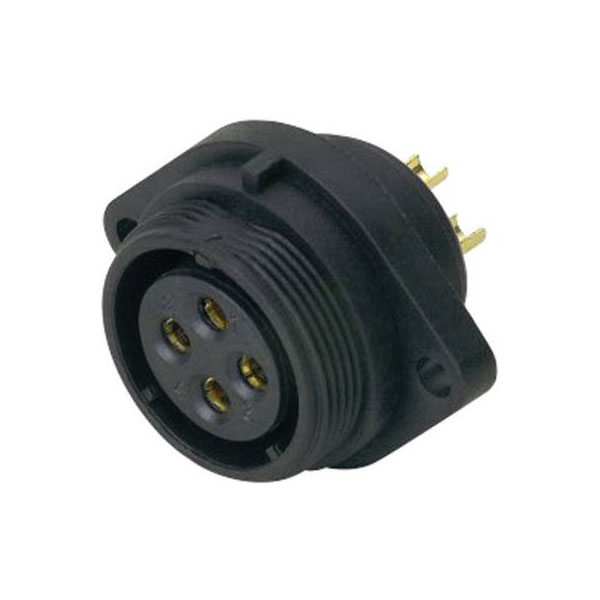

Image Representative of Range

Weipu SP2113/S9 SP21 Socket Bullet Connector 9-Pin UV Resistant

Weipu
Standard range
Order Code:

13-5370

Brand: Weipu MPN: SP2113 / S 9 EAN-13: 2050001515339
Qty Unit Price (Ex VAT)
1+ £5.09
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
42 in stock, despatched in 4 working days

The Weipu SP2113 / S 9 is a built-in bullet connector socket featuring 9 pins, part of the SP21 series. Manufactured by Weipu, it is known for its reliability and robust construction. Typically used in industrial and outdoor applications, it provides secure and durable connections in challenging environments.
Type Bullet connector
AWG 18
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, built-in
Contact material Gold plated
Cross-section range 0.758 mm² (max)
IP rating IP68
max. cross section 0.758mm²
Misc Attribute Weipu Connector
Mounting hole diameter 21mm
Nominal current 10A
Nominal current - rounded value 10A
Nominal voltage 250V
Number of pins 9
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 9
