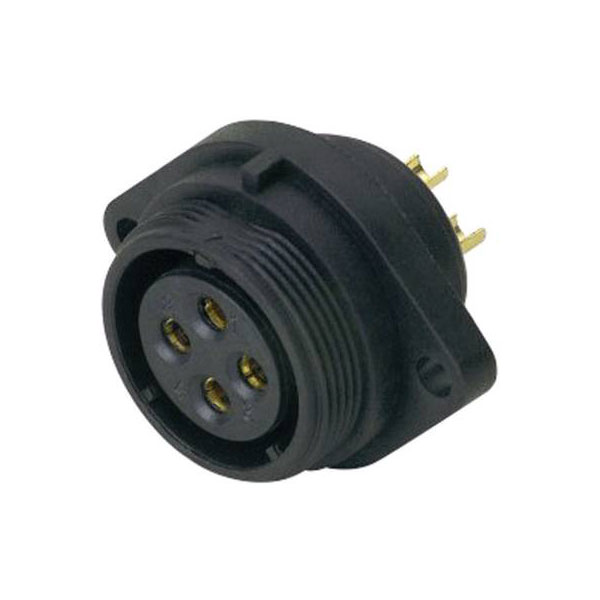

Weipu SP2113/S 5B SP21 Bullet Connector Socket 5 Pins IP68 UV Resistant

Image Representative of Range

Weipu SP2113/S 5B SP21 Bullet Connector Socket 5 Pins IP68 UV Resistant

Weipu
Standard range
Order Code:

13-5367

Brand: Weipu MPN: SP2113 / S 5B EAN-13: 2050001515308
Qty Unit Price (Ex VAT)
1+ £4.38
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
42 in stock, despatched in 4 working days

Manufactured by Weipu, the SP2113 / S 5B is a durable bullet connector socket with a built-in design, featuring a total of 5 pins. Part of the SP21 series of round connectors, it is suitable for outdoor and industrial applications where a reliable electrical connection is needed. This connector is known for its robust construction and reliability in harsh environments.
Type Bullet connector
AWG 18/11
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, built-in
Contact material Gold plated
Cross-section range 4.17 mm² (max)
IP rating IP68
max. cross section 4.17mm²
Misc Attribute Weipu Connector
Mounting hole diameter 21mm
Nominal current 30A
Nominal current - rounded value 30A
Nominal voltage 500V AC
Number of pins 5
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 5
