Weipu SP2113/P9 SP21 Bullet Connector Plug 9 Pins UV Resistant Sealed

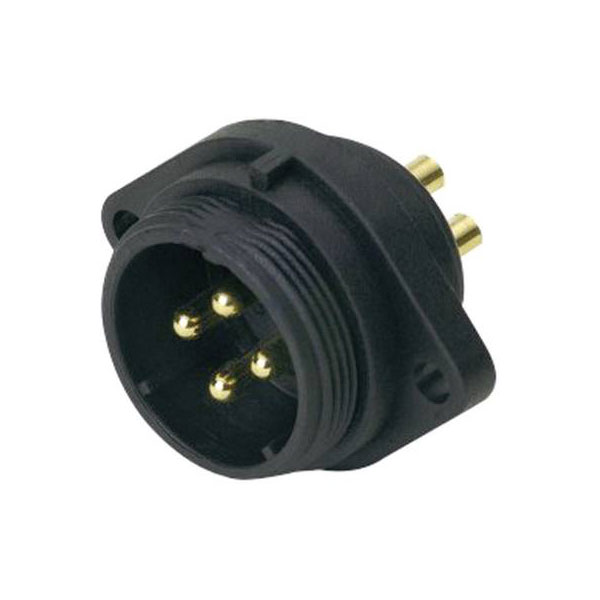

Image Representative of Range

Weipu SP2113/P9 SP21 Bullet Connector Plug 9 Pins UV Resistant Sealed

Weipu
Standard range
Order Code:

13-5360

Brand: Weipu MPN: SP2113 / P 9 EAN-13: 2050001515247
Qty Unit Price (Ex VAT)
1+ £5.09
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
150 in stock, despatched in 4 working days

The Weipu SP2113/P 9 is a bullet connector plug designed for mounting, featuring a robust build with a total of 9 pins. Manufactured by Weipu, it is part of the SP21 series of round connectors, known for their reliability in demanding environments. This connector is typically used in industrial and outdoor applications where a secure and weatherproof connection is essential.
Type Bullet connector
AWG 18
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, mount
Contact material Gold plated
Cross-section range 0.758 mm² (max)
IP rating IP68
max. cross section 0.758mm²
Misc Attribute Weipu Connector
Mounting hole diameter 21mm
Nominal current 10A
Nominal current - rounded value 10A
Nominal voltage 250V
Number of pins 9
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 9
