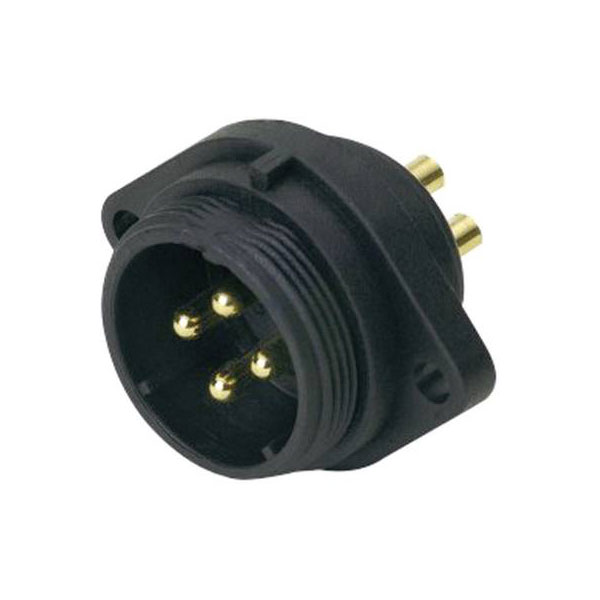

Weipu SP2113/P 5B SP21 Connector Plug UV Resistant Waterproof Robust

The Weipu SP2113 / P 5B bullet connector is a robust plug suitable for mounting applications. Manufactured by Weipu, it is part of the durable SP21 series of round connectors. This versatile connector is commonly used in industrial and outdoor environments.

Type	Plug, mount
Connector Size	29 mm dia
Gender	Plug
Case Material	PPS
Connection	Soldering
Connection Angle	180°
Contact Material	Gold plated
Cross-section range	4.17 mm² (max)
Current Rating	25A
IP Rating	IP68
max. cross section	4.17mm²
Maximum Temperature	+105°C
Min. temperature	-65°C
Mounting Hole Diameter	21mm
Nominal Voltage	230V
Series	SP21
Termination	Screw-type locking
Wire Gauge (AWG)	18/11
