Weipu SP2112 S2 SP21 Socket 2-Pin Waterproof UV Resistant Screw Lock

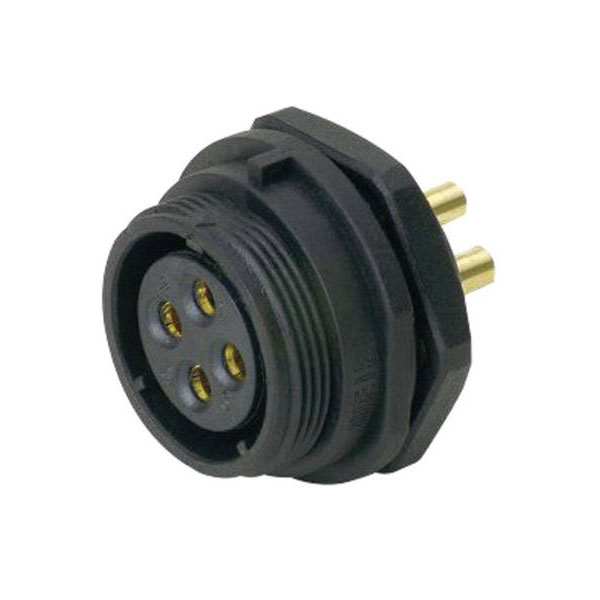

Image Representative of Range

Weipu SP2112 S2 SP21 Socket 2-Pin Waterproof UV Resistant Screw Lock

Weipu
Standard range
Order Code:

13-5345

Brand: Weipu MPN: SP2112 / S 2 EAN-13: 2050001515087
Qty Unit Price (Ex VAT)
1+ £4.38
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
258 in stock, despatched in 4 working days

The Weipu SP2112 / S 2 bullet connector is a built-in socket featuring 2 pins, designed for integration into various electrical applications. As part of the SP21 series, it offers robust connectivity in challenging environments. This connector is typically used in industrial, automotive, and outdoor equipment where reliable, weatherproof connections are essential.
Type Bullet connector
AWG 11
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, built-in
Contact material Gold plated
Cross-section range 4.17 mm² (max)
IP rating IP68
max. cross section 4.17mm²
Max. temperature +100°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Mounting hole diameter 21mm
Nominal current 30A
Nominal current - rounded value 30A
Nominal voltage 250V
Number of pins 2
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 2
