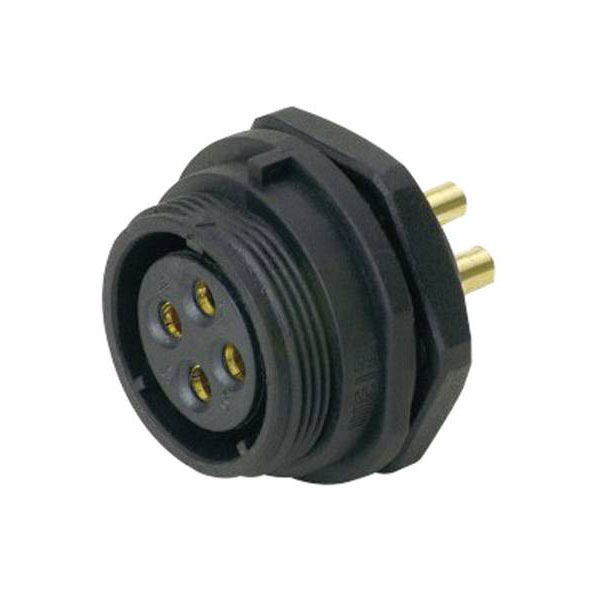

Weipu SP2112/S 5B SP21 Bullet Socket Built-in Waterproof UV Resistant

The Weipu SP2112 / S 5B bullet connector socket is a built-in, round connector from the SP21 series, known for its durability and reliability. As a bullet connector, it is typically used in demanding environments where a secure and waterproof connection is essential, such as in industrial and outdoor applications. Produced by Weipu, this connector ensures a robust electrical connection with easy installation and maintenance.

Type	Socket, built-in
Connector Size	29 mm dia
Gender	Socket
Case Material	PPS
Connection	Soldering
Connection Angle	180°
Contact Material	Gold plated
Cross-section range	4.17 mm² (max)
Current Rating	12A
IP Rating	IP68
max. cross section	4.17mm²
Mounting Hole Diameter	21mm
Nominal Voltage	250V
Series	SP21
Termination	Screw-type locking
Wire Gauge (AWG)	18/11
