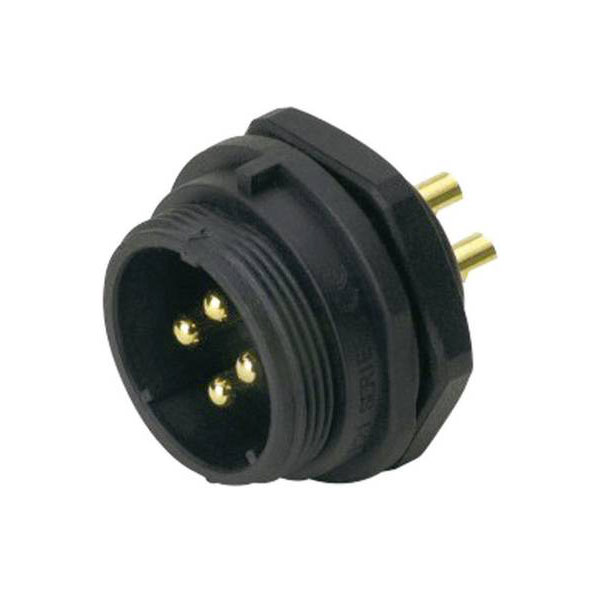

Weipu SP2112/P5C SP21 Bullet Connector Plug 5 Pins Screw Mount IP68

Image Representative of Range

Weipu SP2112/P5C SP21 Bullet Connector Plug 5 Pins Screw Mount IP68

Weipu
Standard range
Order Code:

13-5340

Brand: Weipu MPN: SP2112 / P 5C EAN-13: 2050001515049
Qty Unit Price (Ex VAT)
1+ £4.38
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
16 in stock, despatched in 4 working days

The Weipu SP2112/P 5C bullet connector is manufactured by Weipu and features five pins, making it ideal for robust electrical applications. This round connector from the SP21 series offers secure connection for industrial and outdoor environments. It's typically used in signal and power connections where durability is required.
Type Bullet connector
AWG 14
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, mount
Contact material Gold plated
Cross-section range 2 mm² (max)
IP rating IP68
max. cross section 2mm²
Max. temperature +80°C
Min. temperature -25°C
Misc Attribute Weipu Connector
Mounting hole diameter 21mm
Nominal current 9A
Nominal current - rounded value 9A
Nominal voltage 250V
Number of pins 5
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 5
