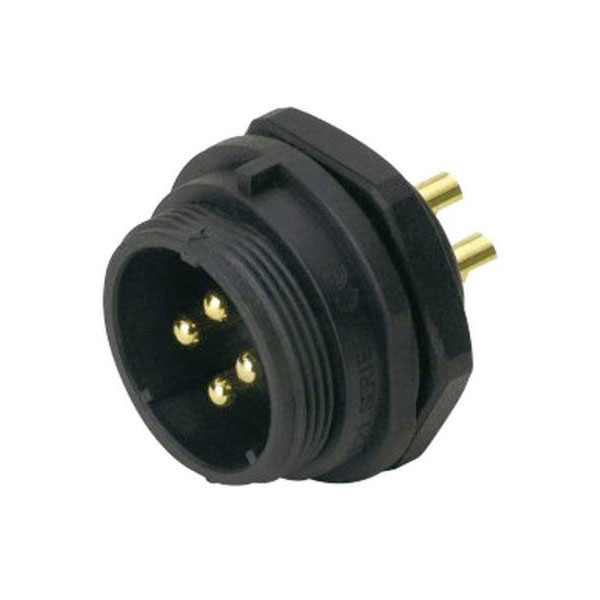

Weipu SP2112/P5 SP21 Bullet Connector 5-Pin Waterproof UV Resistant

Image Representative of Range

Weipu SP2112/P5 SP21 Bullet Connector 5-Pin Waterproof UV Resistant

Weipu
Extended range
Order Code:

13-5343

Brand: Weipu MPN: SP2112 / P5 EAN-13: 2050001515025
Qty Unit Price (Ex VAT)
1+ £4.38
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 3 weeks

The Weipu SP2112/P5 is a bullet connector plug featuring a total of 5 pins, designed for use in the SP21 series of round connectors. Manufactured by Weipu, this durable connector is suitable for applications requiring secure, reliable connections, such as industrial machinery and outdoor equipment. Its robust construction ensures optimal performance in challenging environments.
Type Bullet connector
AWG 11
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, mount
Contact material Gold plated
Cross-section range 4.17 mm² (max)
IP rating IP68
max. cross section 4.17mm²
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute Weipu Connector
Mounting hole diameter 21mm
Nominal current 13A
Nominal current - rounded value 13A
Nominal voltage 200V
Number of pins 5
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 5
