Weipu SP2112-P2 SP21 Connector Plug 2-Pin Waterproof UV Resistant

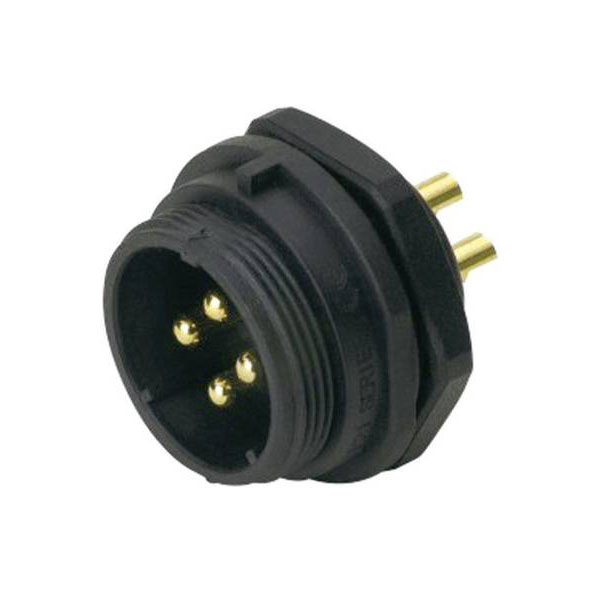

Image Representative of Range

Weipu SP2112-P2 SP21 Connector Plug 2-Pin Waterproof UV Resistant

Weipu
Standard range
Order Code:

13-5336

Brand: Weipu MPN: SP2112 / P 2 EAN-13: 2050001514998
Qty Unit Price (Ex VAT)
1+ £4.38
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
589 in stock, despatched in 4 working days

The Weipu SP2112/P2 bullet connector is a robust and reliable plug with two pins, designed for secure mounting. Manufactured by Weipu, it is part of the SP21 series of round connectors, ideal for outdoor and rugged applications. These connectors are commonly used in industrial and automotive environments due to their durability and weather resistance.
Type Bullet connector
AWG 11
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, mount
Contact material Gold plated
Cross-section range 4.17 mm² (max)
IP rating IP68
max. cross section 4.17mm²
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute Weipu Connector
Mounting hole diameter 21mm
Nominal current 13A
Nominal current - rounded value 13A
Nominal voltage 200V
Number of pins 2
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 2
