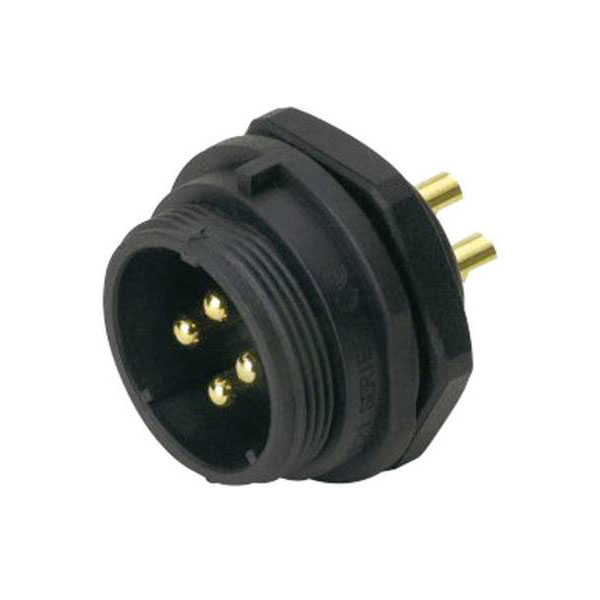

Weipu SP2112/P 5B SP21 Bullet Connector Screw Lock UV Resistant Waterproof

Weipu is the manufacturer of the SP2112 / P 5B bullet connector, a reliable plug designed for secure mounting. This component is part of the SP21 series of round connectors, known for their durability and versatility. It is typically used in industrial and outdoor applications requiring robust and watertight connections.

Type	Plug, mount
Connector Size	29 mm dia
Gender	Plug
Case Material	PPS
Connection	Soldering
Connection Angle	180°
Contact Material	Gold plated
Cross-section range	4.17 mm² (max)
Current Rating	13A
IP Rating	IP68
max. cross section	4.17mm²
Maximum Temperature	+125°C
Min. temperature	-55°C
Mounting Hole Diameter	21mm
Nominal Voltage	500V
Series	SP21
Termination	Screw-type locking
Wire Gauge (AWG)	18/11
