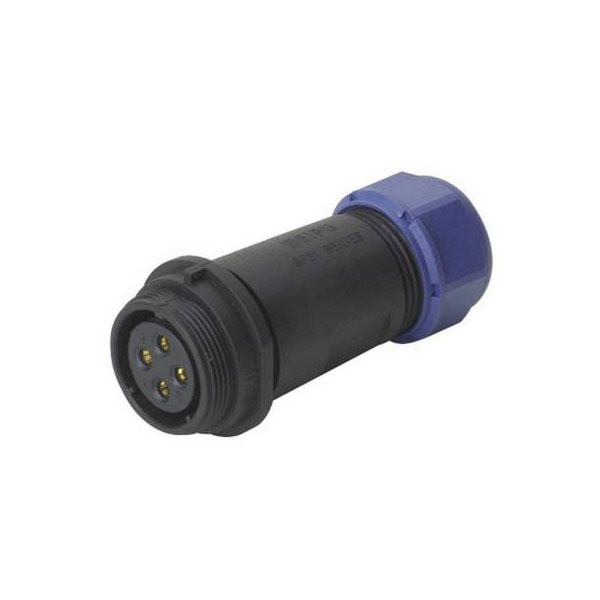

Weipu SP2111 S5CII SP21 Bullet Connector Socket Straight 5 Pins

Image Representative of Range

Weipu SP2111 S5CII SP21 Bullet Connector Socket Straight 5 Pins

Weipu
Standard range
Order Code:

13-5332

Brand: Weipu MPN: SP2111 / S 5C II EAN-13: 2050001514950
Qty Unit Price (Ex VAT)
1+ £4.74
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
81 in stock, despatched in 4 working days

The Weipu SP2111/S 5C II is a bullet connector socket featuring a straight design and five pins, part of the SP21 series. Manufactured by Weipu, this connector offers reliable performance in electrical applications. It is commonly used in industrial equipment and outdoor installations due to its robust construction.
Type Bullet connector
AWG 14
Cable Ø (max.) 12mm
Cable Ø range 7 - 12 mm
Cable Ø up to 7mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, straight
Contact material Gold plated
Cross-section range 2 mm² (max)
IP rating IP68
max. cross section 2mm²
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute Weipu Connector
Nominal current 13A
Nominal current - rounded value 13A
Nominal voltage 500V
Number of pins 5
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 5
