Weipu SP2111/S 12 II SP21 Socket Straight 12 Pins UV & Water Resistant

Image Representative of Range

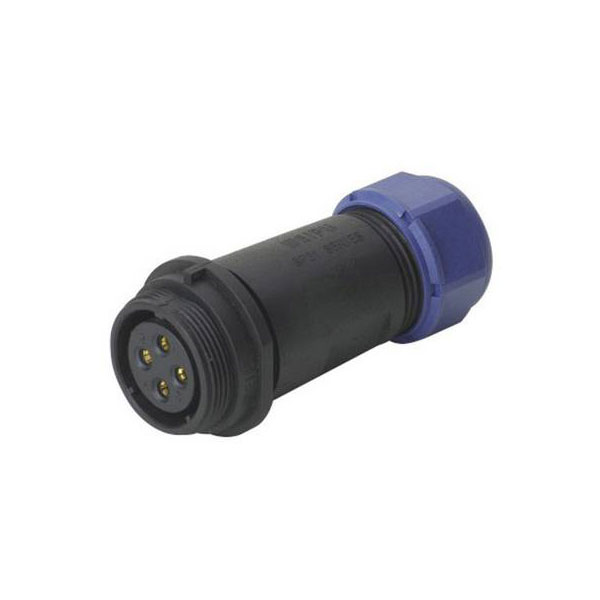

Weipu SP2111/S 12 II SP21 Socket Straight 12 Pins UV & Water Resistant

Weipu
Standard range
Order Code:

13-5326

Brand: Weipu MPN: SP2111 / S 12 II EAN-13: 2050001514981
Qty Unit Price (Ex VAT)
1+ £5.43
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
10 in stock, despatched in 4 working days

Weipu manufactures the SP2111 / S 12 II bullet connector, a straight socket with 12 pins, part of the SP21 series of round connectors. It is typically used for secure electrical connections in various industrial and outdoor applications due to its robust design. The connector ensures reliable performance, making it ideal for challenging environments.
Type Bullet connector
AWG 18
Cable Ø (max.) 12mm
Cable Ø range 7 - 12 mm
Cable Ø up to 7mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, straight
Contact material Gold plated
Cross-section range 0.758 mm² (max)
IP rating IP68
max. cross section 0.758mm²
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute Weipu Connector
Nominal current 13A
Nominal current - rounded value 13A
Nominal voltage 200V
Number of pins 12
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 12
