Weipu SP2111/P2I SP21 Connector Plug 2-Pin Waterproof UV Resistant

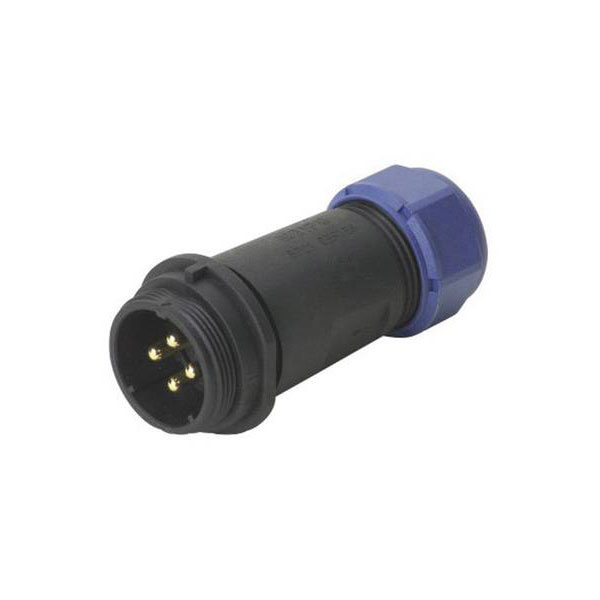

Image Representative of Range

Weipu SP2111/P2I SP21 Connector Plug 2-Pin Waterproof UV Resistant

Weipu
Standard range
Order Code:

13-5318

Brand: Weipu MPN: SP2111 / P 2 I EAN-13: 2050001514813
Qty Unit Price (Ex VAT)
1+ £4.74
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
7 in stock, despatched in 4 working days

Weipu manufactures the SP2111 / P 2 I, a straight bullet connector plug with two pins, as part of the SP21 series. This robust and reliable connector is designed for secure electrical connections. It is typically used in industrial equipment and outdoor installations.
Type Bullet connector
AWG 11
Cable Ø (max.) 7mm
Cable Ø range 4 - 7 mm
Cable Ø up to 4mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 4.17 mm² (max)
IP rating IP68
max. cross section 4.17mm²
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute Weipu Connector
Nominal current 13A
Nominal current - rounded value 13A
Nominal voltage 600V
Number of pins 2
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 2
