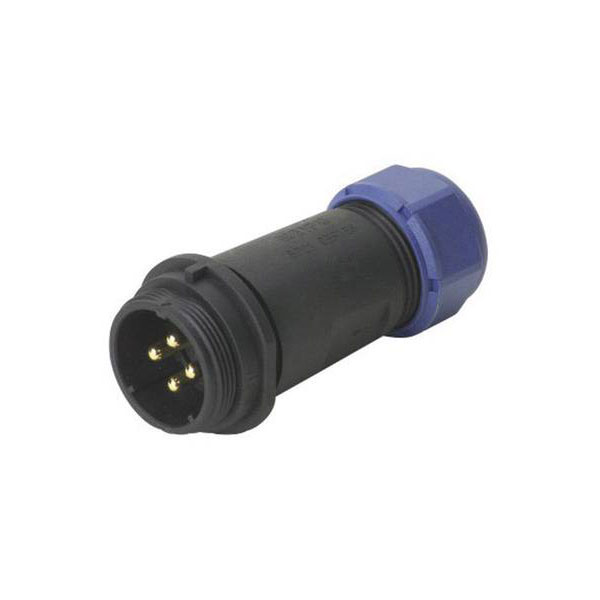

Weipu SP2111/P 5C II SP21 Bullet Connector 5-Pin Straight Plug UV-Resistant

Image Representative of Range

Weipu SP2111/P 5C II SP21 Bullet Connector 5-Pin Straight Plug UV-Resistant

Standard range
Order Code:

13-5323

Brand: Weipu MPN: SP2111 / P 5C II EAN-13: 2050001514868
Qty Unit Price (Ex VAT)
1+ £4.74
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
12 in stock, despatched in 4 working days

The Weipu SP2111 / P 5C II is a bullet connector plug from the SP21 series, featuring five pins. Manufactured by Weipu, this straight plug is renowned for its robust design, making it suitable for various industrial and outdoor applications. It's typically used in systems requiring reliable and secure electrical connections in challenging environments.
Type Bullet connector
AWG 14
Cable Ø (max.) 12mm
Cable Ø range 7 - 12 mm
Cable Ø up to 7mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 2 mm² (max)
IP rating IP68
max. cross section 2mm²
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute Weipu Connector
Nominal current 15A
Nominal current - rounded value 15A
Nominal voltage 600V
Number of pins 5
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 5
