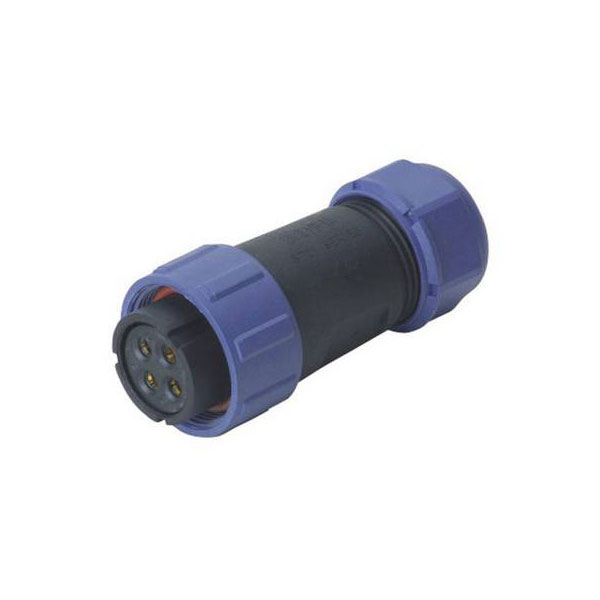

Weipu SP2110/S 7 II SP21 Bullet Connector Socket Straight 7 Pins UV Resistant

Image Representative of Range

Weipu SP2110/S 7 II SP21 Bullet Connector Socket Straight 7 Pins UV Resistant

Weipu
Standard range
Order Code:

13-5314

Brand: Weipu MPN: SP2110 / S 7 II EAN-13: 2050001514783
Qty Unit Price (Ex VAT)
1+ £5.09
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
91 in stock, despatched in 4 working days

The Weipu SP2110 / S 7 II is a straight socket bullet connector featuring seven pins, part of the SP21 series of round connectors. Manufactured by Weipu, this connector is typically used in industrial applications for secure and reliable electrical connections. Its robust design makes it suitable for outdoor or harsh environment use.
Type Bullet connector
AWG 14
Cable Ø (max.) 12mm
Cable Ø range 7 - 12 mm
Cable Ø up to 7mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, straight
Contact material Gold plated
Cross-section range 2 mm² (max)
IP rating IP68
max. cross section 2mm²
Misc Attribute Weipu Connector
Nominal current 15A
Nominal current - rounded value 15A
Nominal voltage 500V AC
Number of pins 7
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 7
