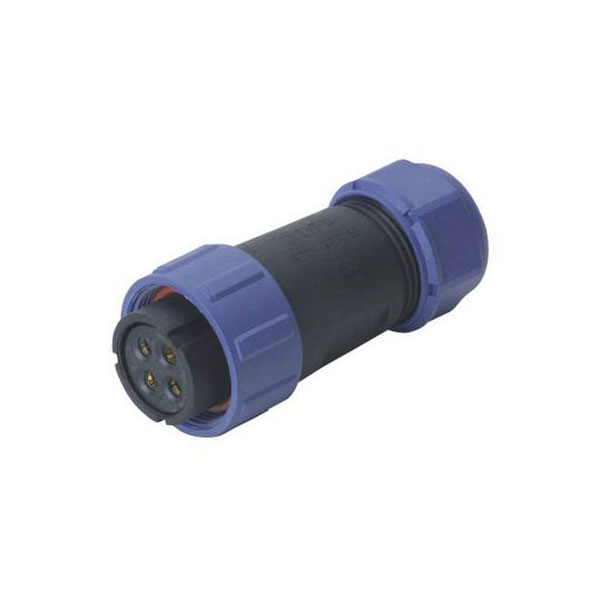

Weipu SP2110/S 5C II SP21 Bullet Connector Socket 5-Pin UV Resistant

Image Representative of Range

Weipu SP2110/S 5C II SP21 Bullet Connector Socket 5-Pin UV Resistant

Weipu
Standard range
Order Code:

13-5313

Brand: Weipu MPN: SP2110 / S 5C II EAN-13: 2050001514776
Qty Unit Price (Ex VAT)
1+ £4.38
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
46 in stock, despatched in 4 working days

The Weipu SP2110/S 5C II is a robust bullet connector socket featuring a straight design with a total of 5 pins. Designed for the SP21 series, this connector is ideal for applications requiring reliable electric connections in harsh environments. Manufactured by Weipu, it is commonly used in industrial and outdoor settings for its durability and secure connection.
Type Bullet connector
AWG 14
Cable Ø (max.) 12mm
Cable Ø range 7 - 12 mm
Cable Ø up to 7mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, straight
Contact material Gold plated
Cross-section range 2 mm² (max)
IP rating IP68
max. cross section 2mm²
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute Weipu Connector
Nominal current 13A
Nominal current - rounded value 13A
Nominal voltage 600V
Number of pins 5
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 5
