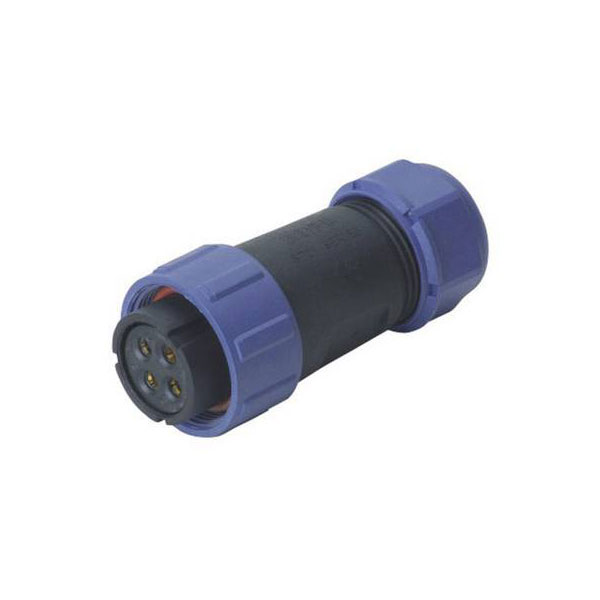

Weipu SP2110 S 5B II SP21 Bullet Connector Straight Water Resistant

Image Representative of Range

Weipu SP2110 S 5B II SP21 Bullet Connector Straight Water Resistant

Weipu
Standard range
Order Code:

13-5312

Brand: Weipu MPN: SP2110 / S 5B II EAN-13: 2050001514769
Qty Unit Price (Ex VAT)
1+ £4.38
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
37 in stock, despatched in 4 working days

The Weipu SP2110/S 5B II is a bullet connector socket, part of the SP21 series of round connectors, noted for its straight configuration. Manufactured by Weipu, this connector is designed for robust and reliable electrical connections in industrial and outdoor applications. It is typically used for secure cable connections in challenging environments.
Type Bullet connector
AWG 18/11
Cable Ø (max.) 12mm
Cable Ø range 7 - 12 mm
Cable Ø up to 7mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, straight
Contact material Gold plated
Cross-section range 4.17 mm² (max)
IP rating IP68
max. cross section 4.17mm²
Misc Attribute Weipu Connector
Nominal current 30A
Nominal current - rounded value 30A
Nominal voltage 500V AC
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
