Weipu SP2110/S 12 II SP21 Bullet Connector Straight Socket 12 Pins UV-Resistant

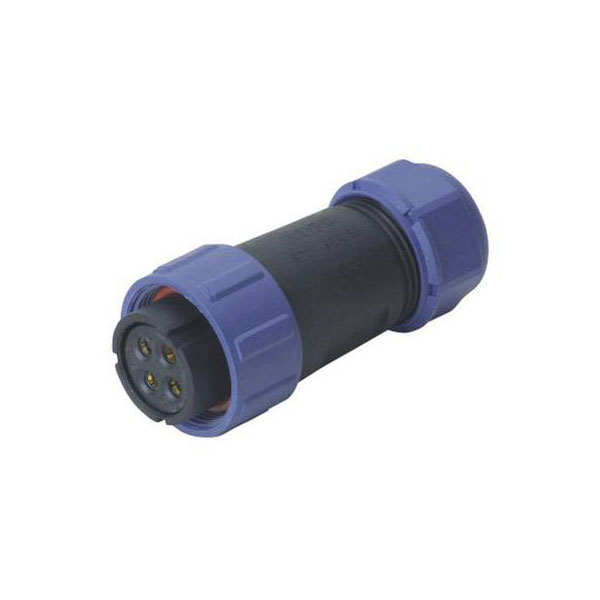

Image Representative of Range

Weipu SP2110/S 12 II SP21 Bullet Connector Straight Socket 12 Pins UV-Resistant

Weipu
Standard range
Order Code:

13-5307

Brand: Weipu MPN: SP2110 / S 12 II EAN-13: 2050001514806
Qty Unit Price (Ex VAT)
1+ £4.98
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
110 in stock, despatched in 4 working days

The SP2110 / S 12 II bullet connector by Weipu is a straight socket featuring 12 pins, part of the SP21 series of round connectors. Known for durability and reliable connectivity, this connector is suitable for industrial and outdoor applications. It is typically used in environments requiring secure electrical connections, such as lighting systems and automation equipment.
Type Bullet connector
AWG 18
Cable Ø (max.) 12mm
Cable Ø range 7 - 12 mm
Cable Ø up to 7mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, straight
Contact material Gold plated
Cross-section range 0.758 mm² (max)
IP rating IP68
max. cross section 0.758mm²
Misc Attribute Weipu Connector
Nominal current 5A
Nominal current - rounded value 5A
Nominal voltage 600V
Number of pins 12
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 12
