Weipu SP2110/P7II SP21 Connector 7 Pins Straight Screw Lock UV Resistant

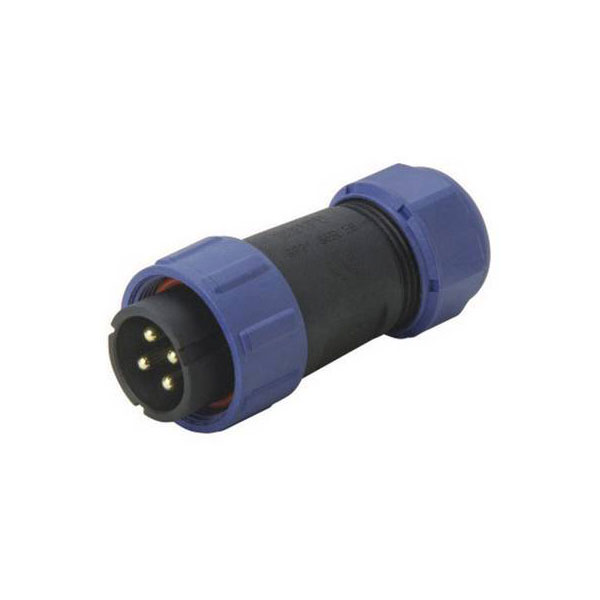

Image Representative of Range

Weipu SP2110/P7II SP21 Connector 7 Pins Straight Screw Lock UV Resistant

Weipu
Standard range
Order Code:

13-5305

Brand: Weipu MPN: SP2110 / P 7 II EAN-13: 2050001514691
Qty Unit Price (Ex VAT)
1+ £5.09
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
129 in stock, despatched in 4 working days

Weipu manufactures the SP2110 / P 7 II bullet connector, a straight plug with 7 pins, series SP21. It is designed for robust and reliable electrical connections in industrial environments. Typical applications include machinery and equipment interfacing where secure and durable connectors are required.
Type Bullet connector
AWG 14
Cable Ø (max.) 12mm
Cable Ø range 7 - 12 mm
Cable Ø up to 7mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 2 mm² (max)
IP rating IP68
max. cross section 2mm²
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute Weipu Connector
Nominal current 15A
Nominal current - rounded value 15A
Nominal voltage 600V
Number of pins 7
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 7
