Weipu SP2110/P12 II SP21 Bullet Connector 12-Pin Plug UV & Water Resistant

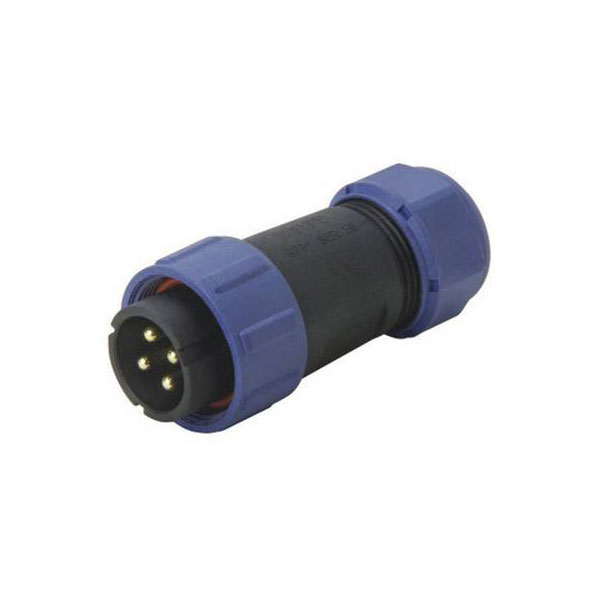

Image Representative of Range

Weipu SP2110/P12 II SP21 Bullet Connector 12-Pin Plug UV & Water Resistant

Weipu
Standard range
Order Code:

13-5298

Brand: Weipu MPN: SP2110 / P 12 II EAN-13: 2050001514714
Qty Unit Price (Ex VAT)
1+ £5.09
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
155 in stock, despatched in 4 working days

The Weipu SP2110 / P 12 II is a bullet connector plug with a straight design, featuring a total of 12 pins. Manufactured by Weipu, it belongs to the SP21 series of round connectors, emphasising reliability and durability. These connectors are typically used in industrial and outdoor applications due to their robust construction.
Type Bullet connector
AWG 18
Cable Ø (max.) 12mm
Cable Ø range 7 - 12 mm
Cable Ø up to 7mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 0.758 mm² (max)
IP rating IP68
max. cross section 0.758mm²
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute Weipu Connector
Nominal current 5A
Nominal current - rounded value 5A
Nominal voltage 600V
Number of pins 12
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 12
