Weipu SP2110/P 5C II SP21 Bullet Connector 5-Pin Straight UV Resistant

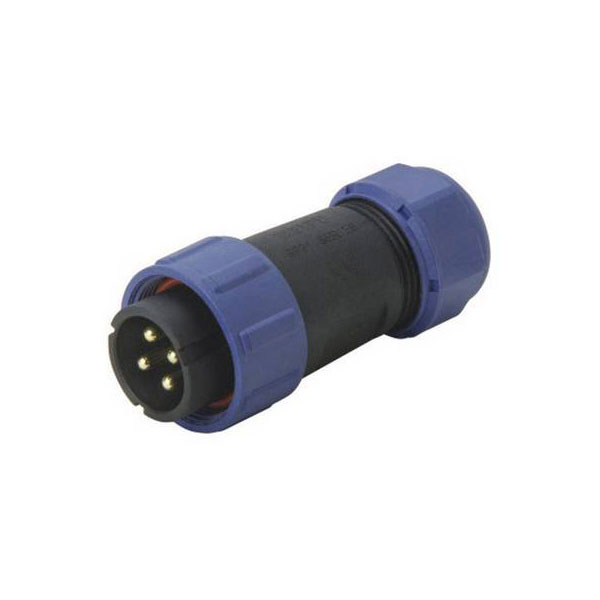

Image Representative of Range

Weipu SP2110/P 5C II SP21 Bullet Connector 5-Pin Straight UV Resistant

Weipu
Standard range
Order Code:

13-5304

Brand: Weipu MPN: SP2110 / P 5C II EAN-13: 2050001514684
Qty Unit Price (Ex VAT)
1+ £4.38
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
106 in stock, despatched in 4 working days

The Weipu SP2110 / P 5C II bullet connector is a straight plug designed with five pins, part of the SP21 series of round connectors. Manufactured by Weipu, it is suited for applications requiring durable and reliable connections in both indoor and outdoor environments. This connector can be typically used in industrial machinery, telecommunications, and automotive systems.
Type Bullet connector
AWG 14
Cable Ø (max.) 12mm
Cable Ø range 7 - 12 mm
Cable Ø up to 7mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 2 mm² (max)
IP rating IP68
max. cross section 2mm²
Max. temperature +105°C
Min. temperature -55°C
Misc Attribute Weipu Connector
Nominal current 15A
Nominal current - rounded value 15A
Nominal voltage 250V
Number of pins 5
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 5
