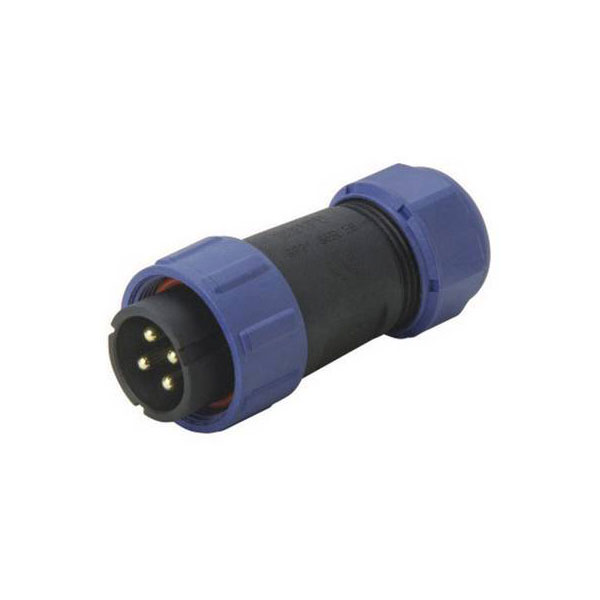

Weipu SP2110/P 5 II SP21 Bullet Connector 5 Pins Straight UV Resistant

Image Representative of Range

Weipu SP2110/P 5 II SP21 Bullet Connector 5 Pins Straight UV Resistant

Weipu
Standard range
Order Code:

13-5302

Brand: Weipu MPN: SP2110 / P 5 II EAN-13: 2050001514660
Qty Unit Price (Ex VAT)
1+ £4.38
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
146 in stock, despatched in 4 working days

The Weipu SP2110/P 5 II bullet connector is a straight plug featuring 5 pins, part of the SP21 series of round connectors. It is manufactured by Weipu and is known for its robust design. Typically used in industrial and outdoor applications, this connector provides reliable performance in harsh environments.
Type Bullet connector
AWG 11
Cable Ø (max.) 12mm
Cable Ø range 7 - 12 mm
Cable Ø up to 7mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 4.17 mm² (max)
IP rating IP68
max. cross section 4.17mm²
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute Weipu Connector
Nominal current 30A
Nominal current - rounded value 30A
Nominal voltage 600V
Number of pins 5
RoHS-compliant Yes
Seal Screw-type locking
Series SP21
Total no. of pins 5
