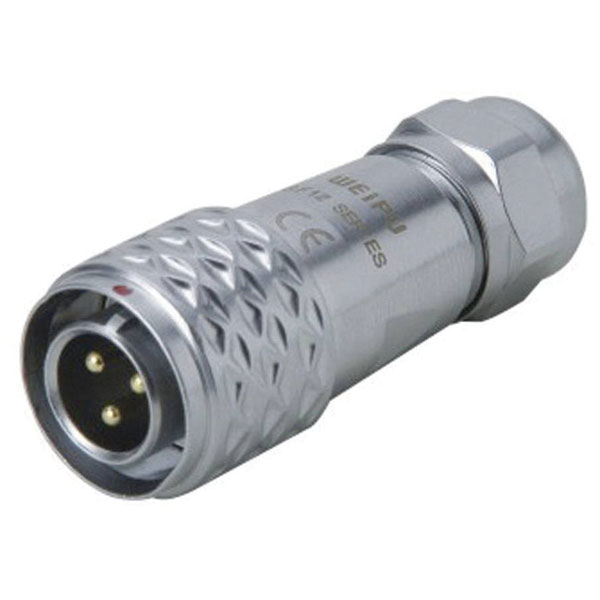

Weipu SF1213/P7 SF12 Connector Plug 7 Pins Push-Pull Lock Compact

Image Representative of Range

Weipu SF1213/P7 SF12 Connector Plug 7 Pins Push-Pull Lock Compact

Weipu
Standard range
Order Code:

13-5242

Brand: Weipu MPN: SF1213/P7 EAN-13: 2050001555571
Qty Unit Price (Ex VAT)
1+ £5.55
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
44 in stock, despatched in 4 working days

The Weipu SF1213/P7 bullet connector is a straight plug featuring 7 pins, part of the SF12 series of round connectors. Manufactured by Weipu, this connector is known for its reliable performance in connecting electronic components. It is typically used in industrial and commercial applications requiring a secure and efficient electrical connection.
Type Bullet connector
AWG 18
Case material Brass, chrome plated
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Brass gold plated
Cross-section range 0.785 mm² (max)
IP rating IP67
max. cross section 0.785mm²
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 3A
Nominal current - rounded value 3A
Nominal voltage 125V
Number of pins 7
RoHS-compliant Yes
Seal Push-Pull
Series SF12
Total no. of pins 7
