Weipu SF1213/P6 SF12 Bullet Connector Plug 6 Pins Secure Push-Pull Lock

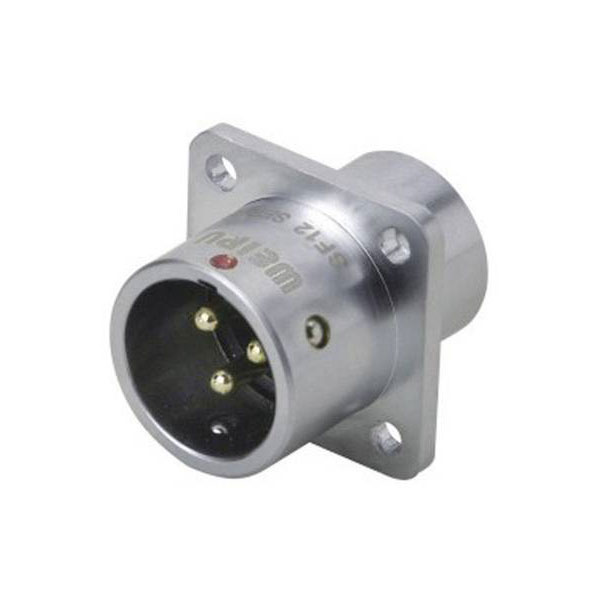

Image Representative of Range

Weipu SF1213/P6 SF12 Bullet Connector Plug 6 Pins Secure Push-Pull Lock

Weipu
Standard range
Order Code:

13-5241

Brand: Weipu MPN: SF1213/P6 EAN-13: 2050001555564
Qty Unit Price (Ex VAT)
1+ £5.55
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

The Weipu SF1213/P6 is a straight bullet connector plug from the SF12 series with a total of 6 pins. Manufactured by Weipu, this connector is renowned for its reliable connections in electronic applications. It is typically used in industrial and electrical systems for secure and efficient connectivity.
Type Bullet connector
AWG 18
Case material Brass, chrome plated
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Brass gold plated
Cross-section range 0.785 mm² (max)
IP rating IP67
max. cross section 0.785mm²
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 4A
Nominal current - rounded value 4A
Nominal voltage 125V
Number of pins 6
RoHS-compliant Yes
Seal Push-Pull
Series SF12
Total no. of pins 6
