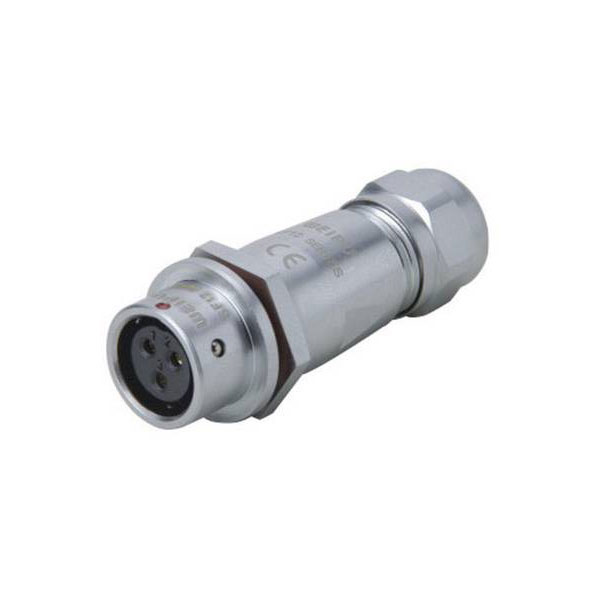

Weipu SF1211/S9 II SF12 Bullet Connector Straight 9-Pin Compact Secure

Weipu manufactures the SF1211/S9 II bullet connector, featuring a straight design with nine pins. It belongs to the SF12 series of round connectors, known for their durability and reliability. This connector is typically used in demanding electrical applications where secure and efficient connection is crucial.

Type	Connector, straight
Number of Contacts	9
Connector Size	18 mm dia
Cable Ø (max.)	8mm
Cable Ø range	5 - 8mm
Cable Ø up to	5mm
Case Material	Brass, chrome plated
Connection	Soldering
Connection Angle	180°
Contact Material	Brass gold plated
Cross-section range	0.758 mm² (max)
Current Rating	3A
IP Rating	IP67
max. cross section	0.758mm²
Maximum Temperature	+85°C
Min. temperature	-40°C
Nominal Voltage	125V
Number of pins	9
Series	SF12
Termination	Push-Pull
Wire Gauge (AWG)	18
