Weipu SF1211/S7 II SF12 Bullet Connector 7 Pins Push-Pull Locking

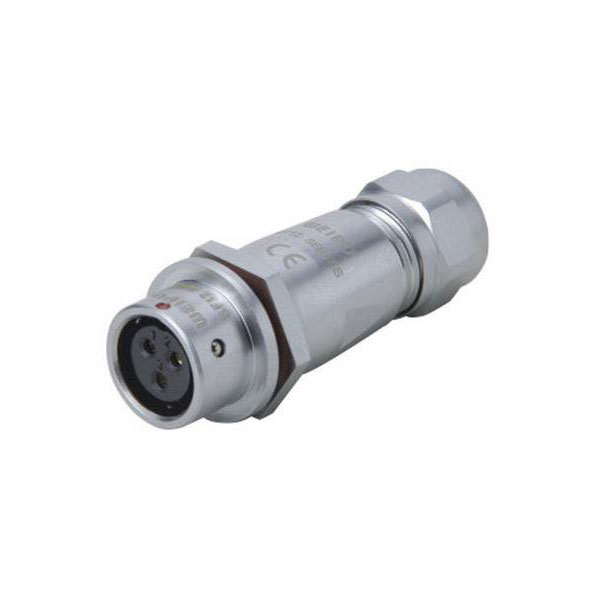

Image Representative of Range

Weipu SF1211/S7 II SF12 Bullet Connector 7 Pins Push-Pull Locking

Weipu
Standard range
Order Code:

13-5221

Brand: Weipu MPN: SF1211/S7 II EAN-13: 2050001555083
Qty Unit Price (Ex VAT)
1+ £9.08
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

Weipu is the manufacturer of the SF1211/S7 II bullet connector, which features a straight design with a total of seven pins. The connector is part of the SF12 series of round connectors and is typically used in applications requiring secure, multi-pin connections. It is suitable for use in various electrical and electronic devices.
Type Bullet connector
AWG 18
Cable Ø (max.) 8mm
Cable Ø range 5 - 8 mm
Cable Ø up to 5mm
Case material Brass, chrome plated
Connection Soldering
Connection angle 180°
Connector type Connector, straight
Contact material Brass gold plated
Cross-section range 0.758 mm² (max)
IP rating IP67
max. cross section 0.758mm²
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 3A
Nominal current - rounded value 3A
Nominal voltage 125V
Number of pins 7
RoHS-compliant Yes
Seal Push-Pull
Series SF12
Total no. of pins 7
