Weipu SF1211/S6 II SF12 Connector 6-Pin Straight Compact Push-Pull Locking

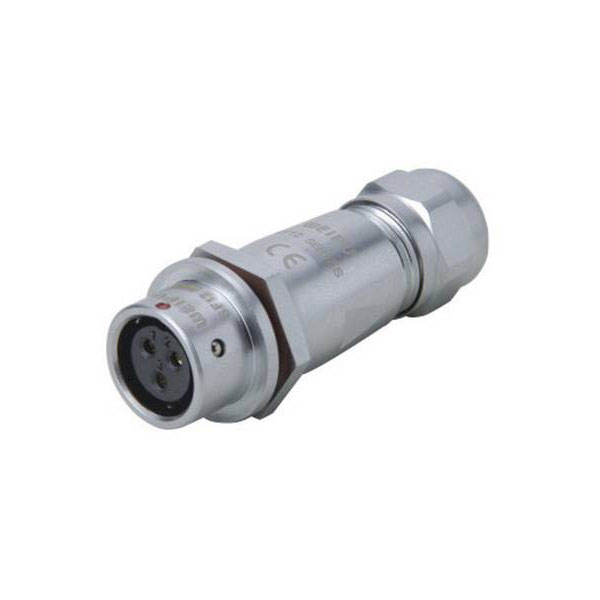

Image Representative of Range

Weipu SF1211/S6 II SF12 Connector 6-Pin Straight Compact Push-Pull Locking

Weipu
Extended range
Order Code:

13-5220

Brand: Weipu MPN: SF1211/S6 II EAN-13: 2050001555076
Qty Unit Price (Ex VAT)
1+ £9.08
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 5 weeks

The Weipu SF1211/S6 II bullet connector is a straight connector with six pins, designed as part of the SF12 series round connectors. Manufactured by Weipu, it is well-suited for reliable electrical connections in various industrial and technical applications. Its robust design is often used in environments where secure and efficient connectivity is crucial.
Type Bullet connector
AWG 18
Cable Ø (max.) 8mm
Cable Ø range 5 - 8 mm
Cable Ø up to 5mm
Case material Brass, chrome plated
Connection Soldering
Connection angle 180°
Connector type Connector, straight
Contact material Brass gold plated
Cross-section range 0.758 mm² (max)
IP rating IP67
max. cross section 0.758mm²
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 3A
Nominal current - rounded value 3A
Nominal voltage 60V
Number of pins 6
RoHS-compliant Yes
Seal Push-Pull
Series SF12
Total no. of pins 6
