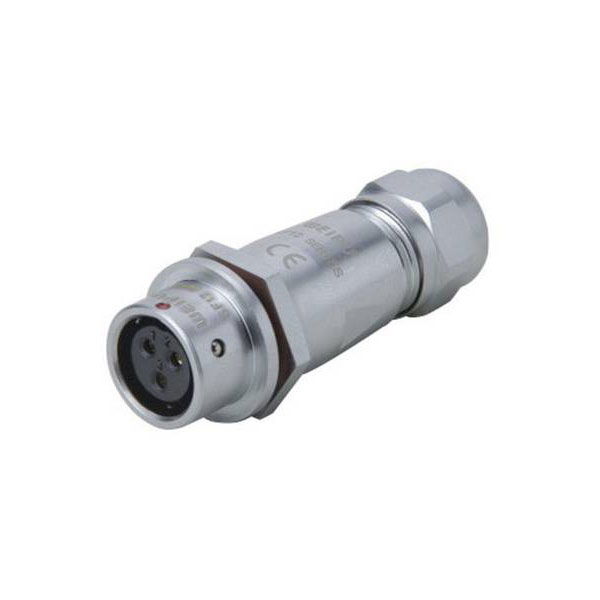

Weipu SF1211/S5 II SF12 Bullet Connector 5 Pins Straight Push-Pull Lock

The Weipu SF1211/S5 II Bullet connector is a straight, five-pin round connector in the SF12 series, known for its reliability in electrical connections. Manufactured by Weipu, this connector is typically used in industrial and commercial applications where a secure and durable connection is required. Its robust design makes it suitable for environments demanding high performance and long-lasting connections.

Type	Connector, straight
Number of Contacts	5
Connector Size	18 mm dia
Cable Ø (max.)	6.5mm
Cable Ø range	4 - 6.5mm
Cable Ø up to	4mm
Case Material	Brass, chrome plated
Connection	Soldering
Connection Angle	180°
Contact Material	Brass gold plated
Cross-section range	0.758 mm² (max)
Current Rating	6A
IP Rating	IP67
max. cross section	0.758mm²
Maximum Temperature	+85°C
Min. temperature	-40°C
Nominal Voltage	250V
Number of pins	5
Series	SF12
Termination	Push-Pull
Wire Gauge (AWG)	18
