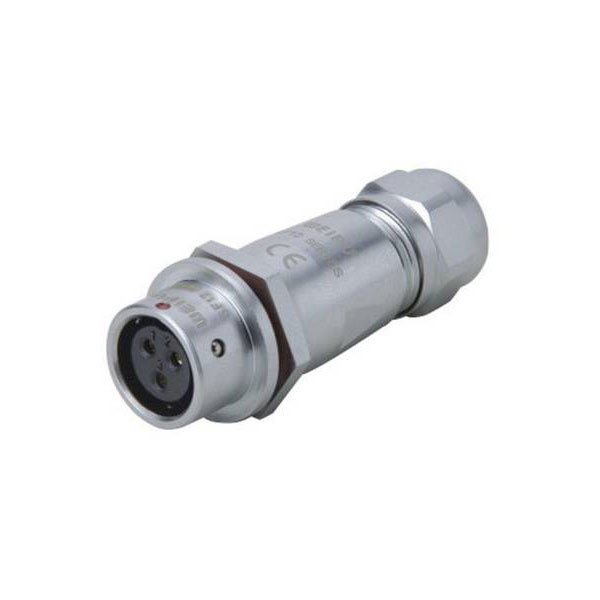

Weipu SF1211/S4 SF12 Connector Straight 4 Pins Push-Pull Locking

Weipu manufactures the SF1211/S4 I bullet connector, featuring four pins within its straight, round SF12 series design. This connector is notable for its durability and straightforward installation. It is typically used in robust industrial and technical applications where secure electrical connections are essential.

Type	Connector, straight
Number of Contacts	4
Connector Size	18 mm dia
Cable Ø (max.)	6.5mm
Cable Ø range	4 - 6.5mm
Cable Ø up to	4mm
Case Material	Brass, chrome plated
Connection	Soldering
Connection Angle	180°
Contact Material	Brass gold plated
Cross-section range	0.758 mm² (max)
Current Rating	4A
IP Rating	IP67
max. cross section	0.758mm²
Max. temperature	+85°C
Min. temperature	-25°C
Nominal Voltage	125V
Series	SF12
Termination	Push-Pull
Wire Gauge (AWG)	18
