Weipu SF1211/S2 SF12 Connector 2-Pin Bullet Push-Pull Locking Compact

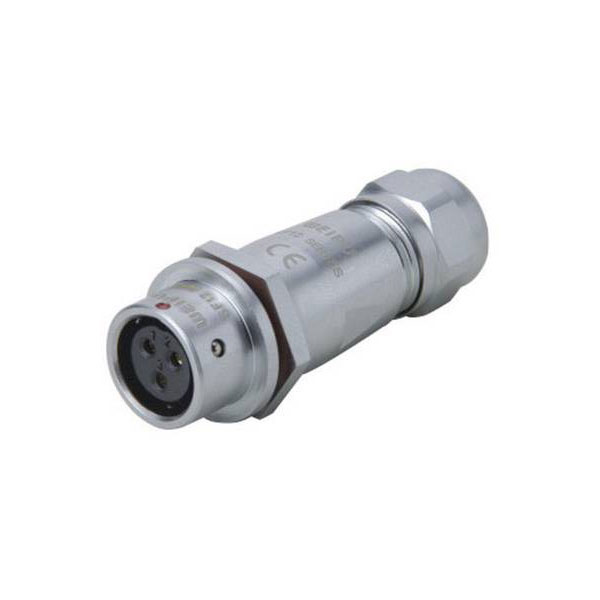

Image Representative of Range

Weipu SF1211/S2 SF12 Connector 2-Pin Bullet Push-Pull Locking Compact

Weipu
Extended range
Order Code:

13-5216

Brand: Weipu MPN: SF1211/S2 I EAN-13: 4064161264431
Qty Unit Price (Ex VAT)
1+ £8.75
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 11 days

Weipu manufactures the SF1211/S2 I, a straight bullet connector in the SF12 series with two pins. This connector is known for its secure connection and compact design, suitable for various electrical applications. It is typically used in electronic devices requiring reliable and efficient connections.
Type Bullet connector
AWG 14
Cable Ø (max.) 6.5mm
Cable Ø range 4 - 6.5 mm
Cable Ø up to 4mm
Case material Brass, chrome plated
Connection Soldering
Connection angle 180°
Connector type Connector, straight
Contact material Brass gold plated
Cross-section range 2 mm² (max)
IP rating IP67
max. cross section 2mm²
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 3A
Nominal current - rounded value 3A
Nominal voltage 125V
Number of pins 2
RoHS-compliant Yes
Seal Push-Pull
Series SF12
Total no. of pins 2
