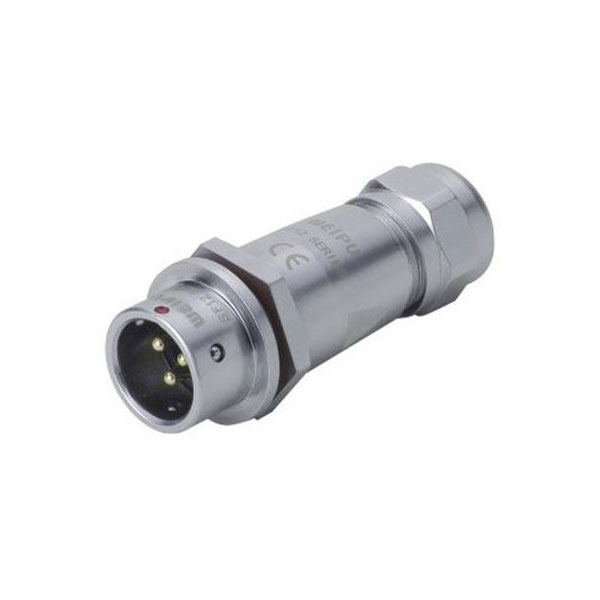

Weipu SF1211/P9 II SF12 Plug Straight 9-Pin Secure Push-Pull Locking

The Weipu SF1211/P9 II is a straight bullet connector featuring a total of 9 pins and belongs to the SF12 series of round connectors. Manufactured by Weipu, this connector is known for its reliable and robust construction. It is typically used in industrial and electronic applications requiring secure and durable connectivity solutions.

Type	Plug, straight
Number of Contacts	9
Connector Size	18 mm dia
Gender	Plug
Cable Ø (max.)	8mm
Cable Ø range	5 - 8mm
Cable Ø up to	5mm
Case Material	Brass, chrome plated
Connection	Soldering
Connection Angle	180°
Contact Material	Brass gold plated
Cross-section range	0.758 mm² (max)
Current Rating	4A
IP Rating	IP67
max. cross section	0.758mm²
Maximum Temperature	+85°C
Min. temperature	-40°C
Nominal Voltage	125V
Number of pins	9
Series	SF12
Termination	Push-Pull
Wire Gauge (AWG)	18
