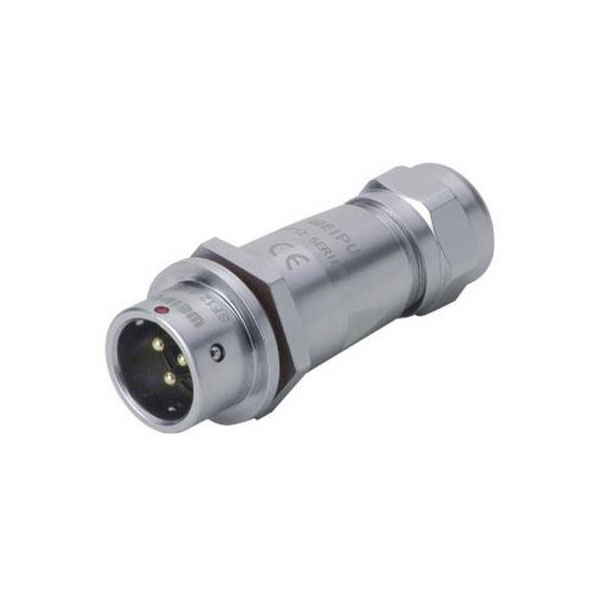

Weipu SF1211/P2 SF12 Connector Plug 2 Pins Compact Push-Pull Locking

Image Representative of Range

Weipu SF1211/P2 SF12 Connector Plug 2 Pins Compact Push-Pull Locking

Weipu
Standard range
Order Code:

13-5210

Brand: Weipu MPN: SF1211/P2 I EAN-13: 2050001554963
Qty Unit Price (Ex VAT)
1+ £8.75
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
21 in stock, despatched in 4 working days

Weipu manufactures the SF1211/P2 I bullet connector, which is a straight plug with 2 pins, part of the SF12 series. It is designed for secure and reliable connections in electronic and electrical applications. This type of connector is typically used in industrial and commercial settings where durable and efficient connectivity is required.
Type Bullet connector
AWG 14
Cable Ø (max.) 6.5mm
Cable Ø range 4 - 6.5 mm
Cable Ø up to 4mm
Case material Brass, chrome plated
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Brass gold plated
Cross-section range 2 mm² (max)
IP rating IP67
max. cross section 2mm²
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 5A
Nominal current - rounded value 5A
Nominal voltage 60V
Number of pins 2
RoHS-compliant Yes
Seal Push-Pull
Series SF12
Total no. of pins 2
