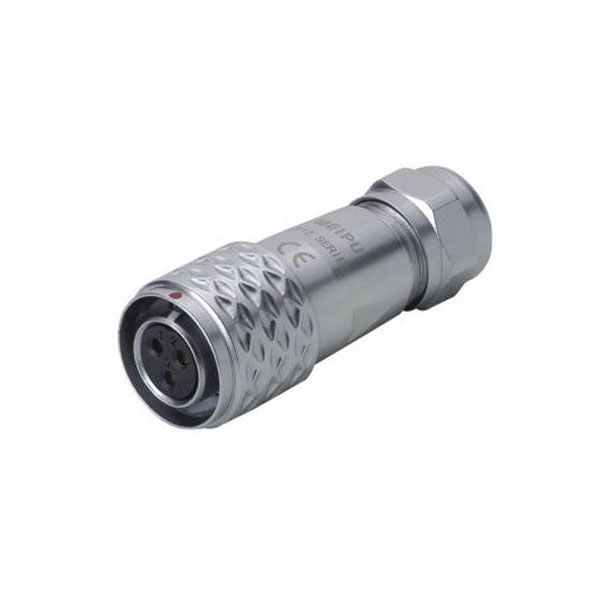

Weipu SF1210/S7 II SF12 Bullet Connector 7 Pins Straight Push-Pull Locking

The Weipu SF1210/S7 II Bullet Connector is a straight, seven-pin connector from the SF12 series. Manufactured by Weipu, it is designed for reliable electrical connections in various industrial applications. This connector is ideal for use in environments requiring robust and secure round connectors.

Type	Connector, straight
Number of Contacts	7
Connector Size	18 mm dia
Cable Ø (max.)	8mm
Cable Ø range	5 - 8mm
Cable Ø up to	5mm
Case Material	Brass, chrome plated
Connection	Soldering
Connection Angle	180°
Contact Material	Brass gold plated
Cross-section range	0.758 mm² (max)
Current Rating	7A
IP Rating	IP67
max. cross section	0.758mm²
Maximum Temperature	+95°C
Min. temperature	-30°C
Nominal Voltage	250V
Number of pins	7
Series	SF12
Termination	Push-Pull
Wire Gauge (AWG)	18
