Weipu SF1210/S5 II SF12 Bullet Connector 5 Pins Straight Push-Pull Locking

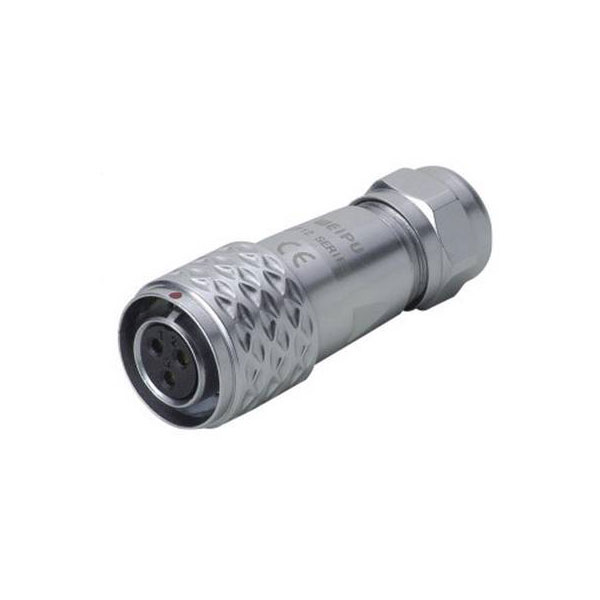

Image Representative of Range

Weipu SF1210/S5 II SF12 Bullet Connector 5 Pins Straight Push-Pull Locking

Weipu
Standard range
Order Code:

13-5206

Brand: Weipu MPN: SF1210/S5 II EAN-13: 2050001554925
Qty Unit Price (Ex VAT)
1+ £8.75
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
42 in stock, despatched in 4 working days

The Weipu SF1210/S5 II is a straight bullet connector featuring a total of 5 pins, part of the SF12 series of round connectors. Manufactured by Weipu, it is designed for easy and reliable electrical connections. Typical applications include industrial and electronic equipment where secure, durable, and efficient connectivity is required.
Type Bullet connector
AWG 18
Cable Ø (max.) 8mm
Cable Ø range 5 - 8 mm
Cable Ø up to 5mm
Case material Brass, chrome plated
Connection Soldering
Connection angle 180°
Connector type Connector, straight
Contact material Brass gold plated
Cross-section range 0.758 mm² (max)
IP rating IP67
max. cross section 0.758mm²
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 1A
Nominal current - rounded value 1A
Nominal voltage 125V
Number of pins 5
RoHS-compliant Yes
Seal Push-Pull
Series SF12
Total no. of pins 5
