Weipu SF1210/P9 II SF12 Bullet Plug 9-Pin Push-Pull Compact Connector

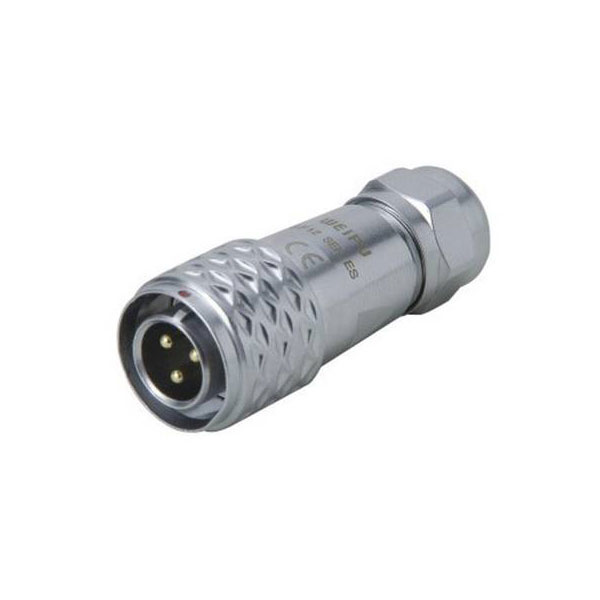

Image Representative of Range

Weipu SF1210/P9 II SF12 Bullet Plug 9-Pin Push-Pull Compact Connector

Weipu
Standard range
Order Code:

13-5202

Brand: Weipu MPN: SF1210/P9 II EAN-13: 2050001554888
Qty Unit Price (Ex VAT)
1+ £8.75
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
49 in stock, despatched in 4 working days

The Weipu SF1210/P9 II is a 9-pin bullet connector plug from the SF12 series, ideal for applications requiring reliable electrical connections. Manufactured by Weipu, this straight, round connector is designed for durability and ease of use in various electronic devices. Typically used in demanding environments, it ensures secure, efficient connections for industrial and technical equipment.
Type Bullet connector
AWG 18
Cable Ø (max.) 8mm
Cable Ø range 5 - 8 mm
Cable Ø up to 5mm
Case material Brass, chrome plated
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Brass gold plated
Cross-section range 0.758 mm² (max)
IP rating IP67
max. cross section 0.758mm²
Max. temperature +95°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 5A
Nominal current - rounded value 5A
Nominal voltage 60V
Number of pins 9
RoHS-compliant Yes
Seal Push-Pull
Series SF12
Total no. of pins 9
