Weipu SF1210/P6 II SF12 Bullet Connector 6-Pin Straight Push-Pull Lock

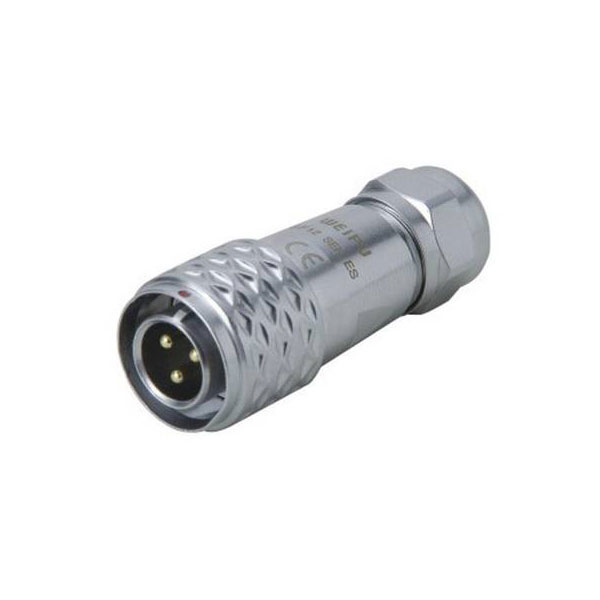

Image Representative of Range

Weipu SF1210/P6 II SF12 Bullet Connector 6-Pin Straight Push-Pull Lock

Weipu
Standard range
Order Code:

13-5200

Brand: Weipu MPN: SF1210/P6 II EAN-13: 2050001554864
Qty Unit Price (Ex VAT)
1+ £8.75
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
49 in stock, despatched in 4 working days

The Weipu SF1210/P6 II is a straight bullet connector plug with 6 pins, designed for reliability in electrical connections. Part of the SF12 series, it is suitable for various industrial and commercial applications requiring secure and durable connectors. Its robust design and straightforward functionality make it a reliable choice for wiring tasks.
Type Bullet connector
AWG 18
Cable Ø (max.) 8mm
Cable Ø range 5 - 8 mm
Cable Ø up to 5mm
Case material Brass, chrome plated
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Brass gold plated
Cross-section range 0.758 mm² (max)
IP rating IP67
max. cross section 0.758mm²
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 3A
Nominal current - rounded value 3A
Nominal voltage 125V
Number of pins 6
RoHS-compliant Yes
Seal Push-Pull
Series SF12
Total no. of pins 6
