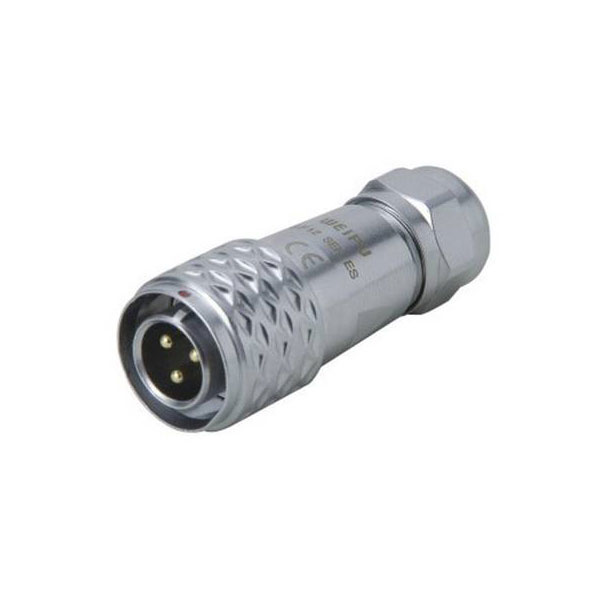

Weipu SF1210/P4 SF12 Plug 4-Pin Push-Pull Lock Compact Easy Connect

Image Representative of Range

Weipu SF1210/P4 SF12 Plug 4-Pin Push-Pull Lock Compact Easy Connect

Weipu
Standard range
Order Code:

13-5198

Brand: Weipu MPN: SF1210/P4 I EAN-13: 2050001554840
Qty Unit Price (Ex VAT)
1+ £8.40
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
101 in stock, despatched in 4 working days

Manufactured by Weipu, the SF1210/P4 I is a straight bullet connector plug with four pins, suitable for applications requiring secure electrical connections. This product belongs to the SF12 series of round connectors, noted for their reliable performance in industrial settings. Typically used in electronics and wiring systems, it ensures stable connectivity in demanding environments.
Type Bullet connector
AWG 18
Cable Ø (max.) 6.5mm
Cable Ø range 4 - 6.5 mm
Cable Ø up to 4mm
Case material Brass, chrome plated
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Brass gold plated
Cross-section range 0.758 mm² (max)
IP rating IP67
max. cross section 0.758mm²
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 6A
Nominal current - rounded value 6A
Nominal voltage 250V
Number of pins 4
RoHS-compliant Yes
Seal Push-Pull
Series SF12
Total no. of pins 4
