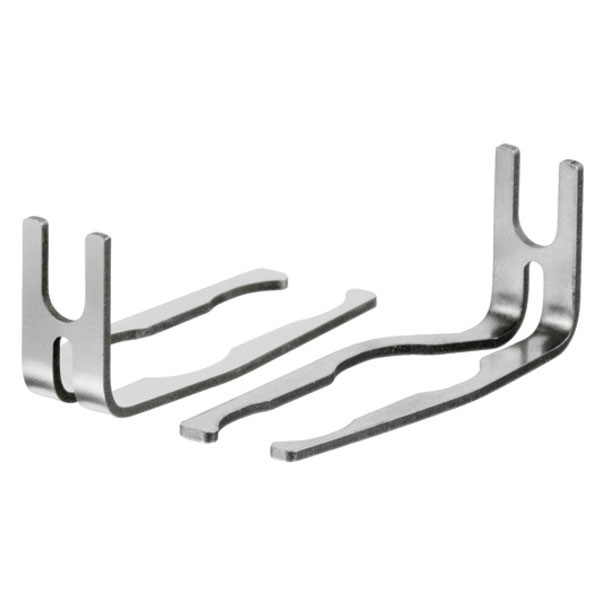

Weidműller ConCept 1908510000 Module Insert Female Unshrouded Connector

MPN: 1908510000
Brand: Weidmuller
Order Code: 14-7589
Country of Origin: Germany

RoHS Compliant

Inc VAT

Qty	Unit Price (Ex VAT)
50+	£3.87

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 50

500 in stock, despatched in 5 working days

Product Details
Product Range
Data Sheets
Quick Quote

Weidmüller HDC CM BUS GCA is a Module insert for industrial connectors (Power/Signal), Number of poles: , Earth connection clamp, Required plug-in slots:. Module insert for a heavy-duty connector for transferring Power or Signal

Type	Module insert
Colour	Silver grey
Conductor cross-section, max.	0mm²
Conductor cross-section, min.	0mm²
Depth	37.8mm
Depth (inches)	1.4882 inch
ECLASS 14.0	27-44-02-18
ECLASS 15.0	27-44-02-18
ETIM 10.0	EC000438
ETIM 8.0	EC000438
ETIM 9.0	EC000438
Free from halogens	false
GTIN (EAN)	4032248643615
Height	17.5mm
Height (inches)	0.689 inch
Low smoke acc. DIN EN 45545-2	Yes
Net weight	4.7g
Number of Poles	0
Plugging cycles	= 500
Qty.	50 items
Rated impulse voltage (DIN EN 61984) 0 kV	Rated current (DIN EN 61984)
Rated voltage (DIN EN 61984)	0 V
REACH SVHC	No SVHC above 0.1 wt%
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Series	Rockstar® ConCept
Type of connection	Clamped
UL 94 flammability rating	V-0
Version	Heavy-duty connectors, HDC insert, ConCept mod-
Width	16.38mm
Width (inches)	0.6449 inch
