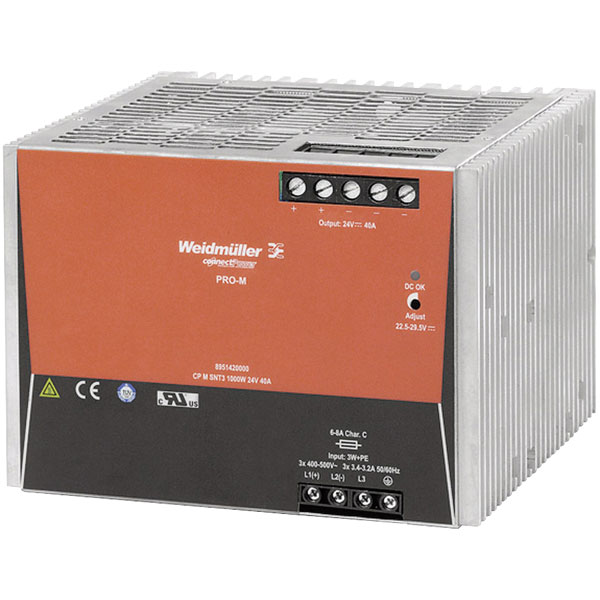

Weidmüller 8951420000 CP M SNT3 1000W 24V 40A DIN Rail Power Supply

The Weidmüller 8951420000 is a PRO-M CP M SNT3 1000W 24V 40A DIN Rail Power Supply and a perfectly reliable PSU for automation technology.

The 8951420000 features a solid but thin metal housing which enables it to be installed without any side gaps. This results in less space required on the mounting rail.

A wide range of AC/DC inputs and a wide temperature range enable this PSU to be used anywhere. Because of its high efficiency, resistance to overloads and high power reserves, the PROM is a trusted power supply for use in any application.

• Input AC Voltage range: 3x 320 V AC, 3 x 575V AC / 2x 360V AC 2x 575V AC
• Input DC Voltage range: 450 to 800V DC (max. 500V DC acc. to UL508)
• Ambient temperature -40°C to +85°C
• Protection class IP 20
• Pollution level: 2
• Termination type: Screw connector
• Phases: 3
• Supplied with a Power Rating of 1000W
• Supplied with a Current Rating of 40A
• Manufacturer's part: Weidmüller 8951420000
