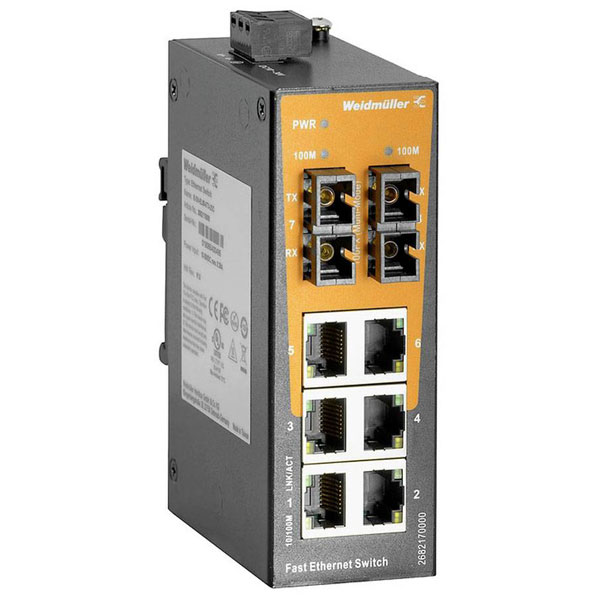

Weidmüller 2682170000 IE-SW-EL08-6TX-2SC Industrial Ethernet Sw 8-port 100MB/s

Weidmüller 2682170000, also known as the IE-SW-EL08-6TX-2SC, is a robust Industrial Ethernet switch designed for reliable networking and WiFi applications. With 8 ports offering data transfer speeds of 100 MBit/s, this device supports efficient network changeover and acts as a network switch, splitter, and hub, facilitating seamless communication between networked systems. The switch is well-suited for demanding environments often found in industrial automation, manufacturing, and process control settings where dependable data exchange is critical. Its versatile design allows for flexibility in connecting various network components, thereby enhancing overall system integration and performance.

Type	IE-SW-EL08-6TX-2SC
Number of Ports	6x RJ45, 2x SC Multi-
10/100 Mbps ports	6
60068-2-31	CISPR 32, FCC Part
60068-2-6	60068-2-27
Altitude, max.	6000 m
Bandwidth backplane	1.6 Gbit/s
Certificate no. (cULus)	E141197
Connection Type	1 removable 3-pole terminal block
Connector Type	SC-Duplex
connector), Multimode	negotiation, Full-/half-
Current	0.14 A
Current Consumption	Voltage
Data switching	Store and Forward
Degree of protection (IP)	IP30
Depth	84mm
Depth (inches)	3.3071 inch
ECLASS 14.0	19-17-04-02
ECLASS 15.0	19-17-04-02
EMC standards	EN 55032, EN 55024,
Ethernet	true
Ethernet ports	6
ETIM 10.0	EC000734
ETIM 8.0	EC000734
ETIM 9.0	EC000734
Fibre-optic ports	100BaseFX ports (SC
Flow control	IEEE 802.3x flow control
Free fall	According to IEC
GTIN (EAN)	4050118692549
Height	115mm
Height (inches)	4.5275 inch
Housing main material	Metal
IP Rating	IP30
Layer 2	true
Layer 3	false
LED indicator	Power LED: PWR, Port
Link-budget	7.5 dB
MAC table size	1 K
Manageable	false
Max. ambient temperature	+75°C
Min. ambient temperature	-40°C
Mode	LED: LNK/ACT, 10/100M
Mounting Method	DIN rail (top hat rail)
MTBF	According to Standard
Net weight	350g
Number of combination-ports RJ45/Mini GBIC	0
Number of max. stackable switches	0
Number of module slots	0
Number of other ports	0
Number of ports 10 Gbps Mini GBIC	0
Number of ports 10 Gbps RJ45	0
Number of ports 10/100 Mbps M12	0
Number of ports 10/100 Mbps RJ45	6
Number of ports 10/100/1000 Mbps RJ45	0
Number of ports 100 Gbps Mini GBIC	0
Number of ports 100 Mbps POF	0
Number of ports 100 Mbps SC	2
Number of ports 100 Mbps ST	0
Number of ports 100/1000 Mbps Mini GBIC	0
Number of ports 1000 Mbps GBIC	0
Number of ports 1000 Mbps Mini GBIC	0
Number of ports 1000 Mbps POF	0
Number of ports 1000 Mbps RJ45	0
Number of ports 1000 Mbps SC (LX)	0
Number of ports 1000 Mbps SC (SX)	0
Number of ports 40 Gbps Mini GBIC	0
Number of ports PoE	0
Operating altitude	Altitude, max.
Operating Temperature	-40 °C...75°C
Operating temperature, max.	75°C
Operating temperature, min.	-40°C
Operating time (hours), min.	1218117 h
Operating Voltage	24V DC
Order No.	1241440000
Overload current protection	Yes
Packet buffer size	448 kbit
Port Type	RJ45
Power supply (LOV)	via terminal
Product Type	Industrial Ethernet switch
Protection degree	IP30
REACH SVHC	Lead 7439-92-1, Lead monoxide 1317-36-8
Receive power	min.
Reverse polarity protection	Yes
RJ45 Ports	10/100BaseT(X), auto
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
Safety standard	UL 61010-1, UL
SCIP	9229992a-00b9-4096-8962-200a7f33e289
Shock	according to IEC
Speed	Fast Ethernet
Standard	IEEE 802.3 for 10BASE-T,
Storage temperature	-40 °C...85°C
Storage temperature, max.	85°C
Storage temperature, min.	-40°C
Supply Voltage	12/24 V DC, 1 single input
Switch	unmanaged
Time interval	5 years
Transceiver type	Multimode
Transfer Rate	100 MBit/s
Transmission distance, typ.	2 km
Transmission power	min.
Transmission rate	100 Mbps
Type of mounting	DIN rail
UL File Number Search	UL Website
Version	Network switch, unmanaged, Fast Ethernet, Num-
Vibration	according to IEC
Voltage supply range	Voltage type
Voltage, max.	33 V
Voltage, min.	9 V
Wavelength	typ.
Weight	328g
Width	41mm
Width (inches)	1.6142 inch
Working principle	Unmanaged switch
