Weidműller 1985970000 Adapter PLC Converter PlugIn Versatile Design

Inc VAT

Qty	Unit Price (Ex VAT)
3+	£66.35

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 3

Despatched within 5 working days - 11 in stock

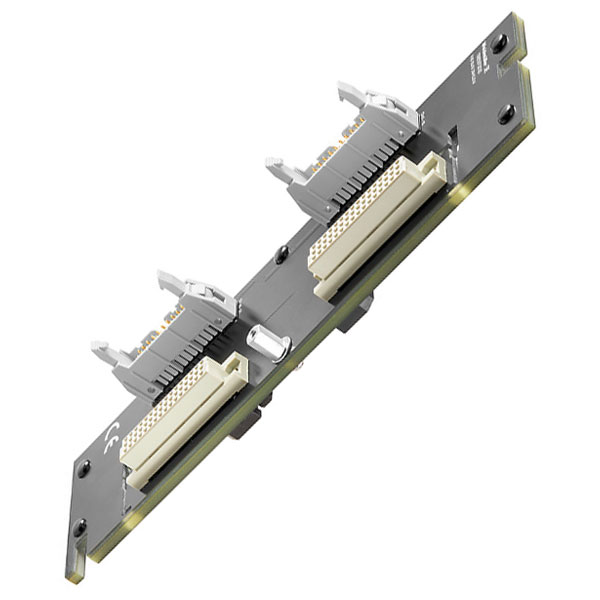

Weidmüller FAD BLK9 2XHE20 M is a Adapter (PLC). Adapter for easy changing of a PLC system while maintaining the existing field cabling.

Type	Adapter for PLC
According to	DIN EN 50178
Connection (field side)	2 x Connector according
Depth	36mm
Depth (inches)	1.4173 inch
ECLASS 14	27-33-02-92
ECLASS 15.0	27-33-02-92
ETIM 10	EC002584
ETIM 8.0	EC002584
ETIM 9.0	EC002584
GTIN (EAN)	4050118370898
Height	218mm
Height (inches)	8.5827 inch
Insulation test voltage AC	1.2 kV
Max. current per byte	2 A
Max. current per channel	1 A
Net weight	183.04g
Operating Temperature	-25...50°C
Operating Voltage	30 V AC / 60 V DC
Pollution severity level	2
Qty.	1 items
Rated insulation voltage	< 250 V AC
REACH SVHC	No SVHC above 0.1 wt%
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Storage temperature	-40...60°C
Storage temperature, max.	60°C
Storage temperature, min.	-40°C
Surge voltage category	III
Total operating current	6 A
Type of electrical accessory/spare part	Adaptor
Type of mechanical accessory/spare part	Other
Width	54mm
Width (inches)	2.126 inch
